Same model may have multiple batches, images only for reference.

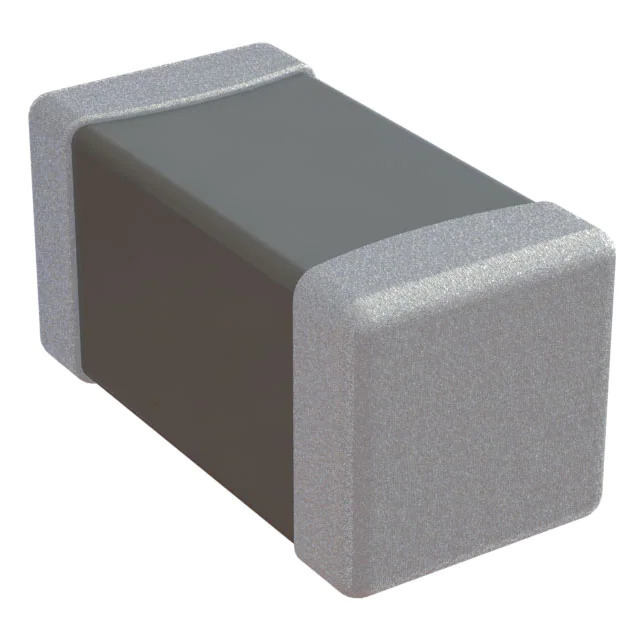

AC0402JRNPO9BN820 Yageo
Same model may have multiple batches, images only for reference.

AC0402JRNPO9BN820

Part No AC0402JRNPO9BN820
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 82PF 50V C0G/NPO 0402 / 82 pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr YAGEO
Series AC
Package Tape & Reel
Product Status Active
Capacitance 82 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings AEC-Q200
Applications Automotive
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) -
Thickness (Max) 0.022" (0.55mm)
Lead Spacing -
Lead Style -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1358665-AC0402JRNPO9BN820
Ultra Librarian 3D Model Ultra Librarian AC0402JRNPO9BN820 CAD Model

Description

The YAGEO 1358665-AC0402JRNPO9BN820 is a ceramic capacitor with a capacitance of 82 pF and a voltage rating of 50V.

  • Capacitor Type: Ceramic Capacitor
  • Manufacturer: YAGEO
  • Series: AC series
  • Mounting Type: Surface Mount
  • Application: Automotive
  • AEC-Q200: Ratings
  • Temperature Range: -55°C to 125°C
  • Package Size: 0402 (1005 Metric)
  • Packaging: Tape and Reel
  • REACH: Unaffected by REACH regulations
  • Thickness: 0.022" (0.55mm)
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Temperature Coefficient: C0G, NP0
  • Capacitance: 82 pF
  • Voltage Rating: 50V
