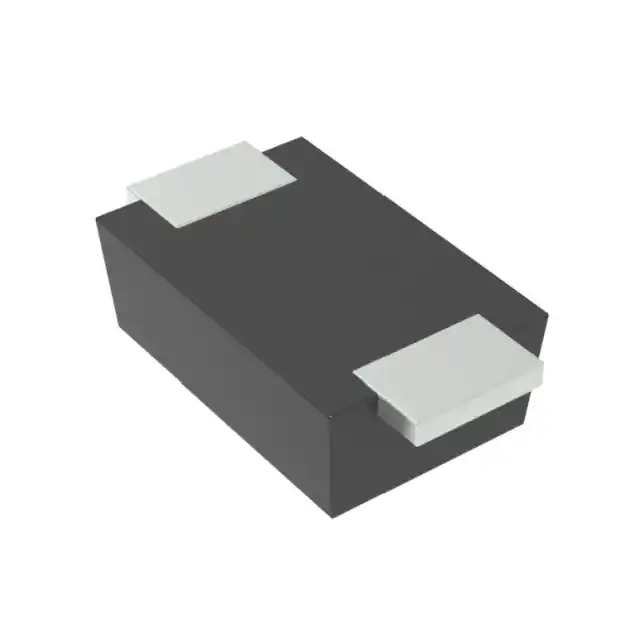

SJD12A26L01

Name: SJD12A26L01
Brand: Yageo
SKU: 1362277
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12A26L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD-123S, 26V, 42.1V, R / 42.1V Clamp 4.8A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12A26L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	YAGEO
Series	SJD12A(C)XXXL01
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	26V
Voltage - Breakdown (Min)	28.9V
Voltage - Clamping (Max) @ Ipp	42.1V
Current - Peak Pulse (10/1000µs)	4.8A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-219AA
Supplier Device Package	SOD-123S
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362277-SJD12A26L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A26L01 CAD Model

Alternative Products

Description

The SJD12A26L01 is a transient voltage suppressor diode from YAGEO.

Series: SJD12A(C)XXXL01
Mounting Type: Surface Mount
Packaging: Tape and Reel
Temperature Range: -55°C to 150°C
Diode Type: Unidirectional
Reverse Standoff Voltage: 26V
Breakdown Voltage: 28.9V
Clamping Voltage @ Ipp: 42.1V
Peak Pulse Power Rating: 200W
Application: General Purpose
Package: DO-219AA (SOD-123S)
