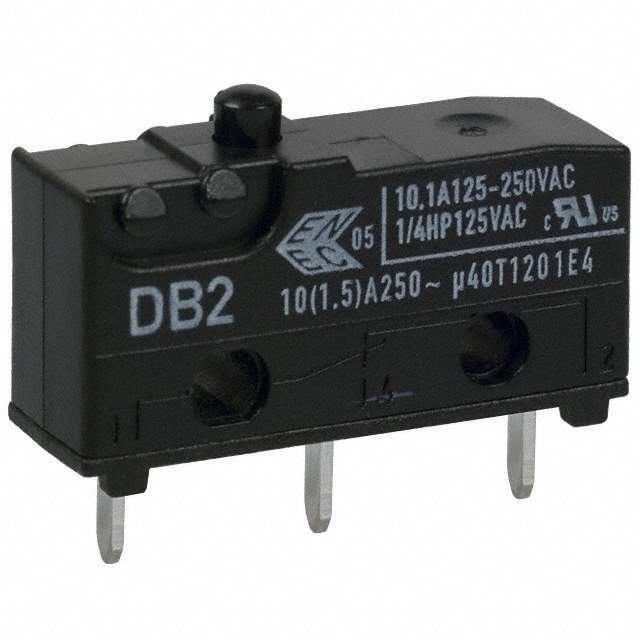

DB2CC1AA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr ZF Electronics
Series DB
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP50 - Dust Protected
Operating Force 250gf
Pretravel 0.040" (1.0mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.025" (0.6mm)
Temperature Range - Operating -40°C ~ 120°C
Operating Position 0.330" (8.4mm)
Electrical Life 6,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number DB2C
Other Names DB2C-C1AA,DB2C-C1AA,CH883
Standard Package 1,200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233409-DB2CC1AA
Ultra Librarian 3D Model Ultra Librarian DB2CC1AA CAD Model

Description

The DB2CC1AA is a limit switch manufactured by ZF Electronics.

  • Series: DB
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round (pin plunger)
  • Current Rating: 10A (AC)
  • Operating Temperature Range: -40°C to 120°C
  • Supply and Demand Status: Unlimited
