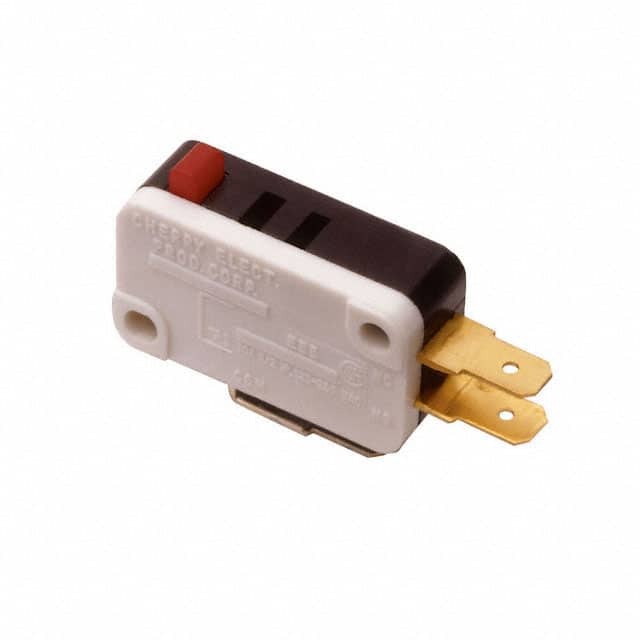

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr ZF Electronics
Series E
Package Bulk
Product Status Obsolete
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 400gf
Operating Position 0.579" (14.7mm)
Pretravel 0.047" (1.2mm)
Differential Travel 0.010" (0.25mm)
Overtravel 0.050" (1.27mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 6,000 Cycles
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 915323-E34-00A
Ultra Librarian 3D Model Ultra Librarian E34-00A CAD Model

Description

The E34-00A is a SPDT On-Mom Round Pin Plunger Limit Switch from the E series by ZF Electronics.

  • Series: E
  • Termination Style: Quick connect
  • Termination Size: 0.187" (4.7mm)
  • Voltage Rating AC: 125V AC
  • Current Rating AC: 15A (AC)
  • Operating Force: 400gf
  • Electrical Life: 6,000 cycles
  • Pretravel: 0.047" (1.2mm)
  • Differential Travel: 0.010" (0.25mm)
  • Overtravel: 0.050" (1.27mm)
  • Operating Position: 0.579" (14.7mm)
  • Mounting Type: Chassis Mounted
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Manufacturer: ZF Electronics
