12226-1100-00 FR 3M
Same model may have multiple batches, images only for reference.

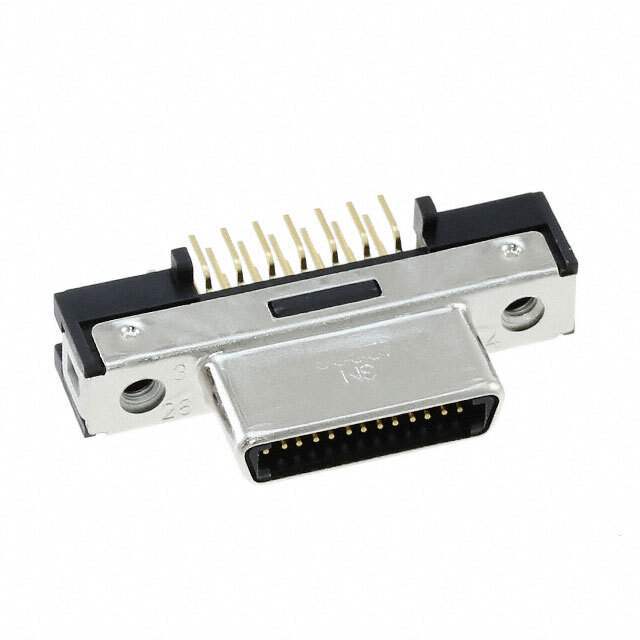

12226-1100-00 FR

Part No 12226-1100-00 FR
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description SHRUNK DELTA RIBBON CONN 26 CONT
Datasheet
12226-1100-00 FR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310410-12226-1100-00 FR
Category Connectors, Interconnects> D-Sub, D-Shaped Connectors >Centronics Connectors
Manufacturer 3M
Packaging Box
Part Status Active
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Termination Solder
Ultra Librarian 3D Model Ultra Librarian 12226-1100-00 FR CAD Model

Description

  • High Density .8 mm Contact Pitch
  • 30u” Gold Contacts
  • Low Profile .5 mm Height
  • Polarized, Metal EMI/ESD Interface
  • Reliable Ribbon Contact
  • Complete with Jacksocket Hardware
  • RoHS Compliant*
