251-5949-02-0602 3M – Price, Stock & Datasheet

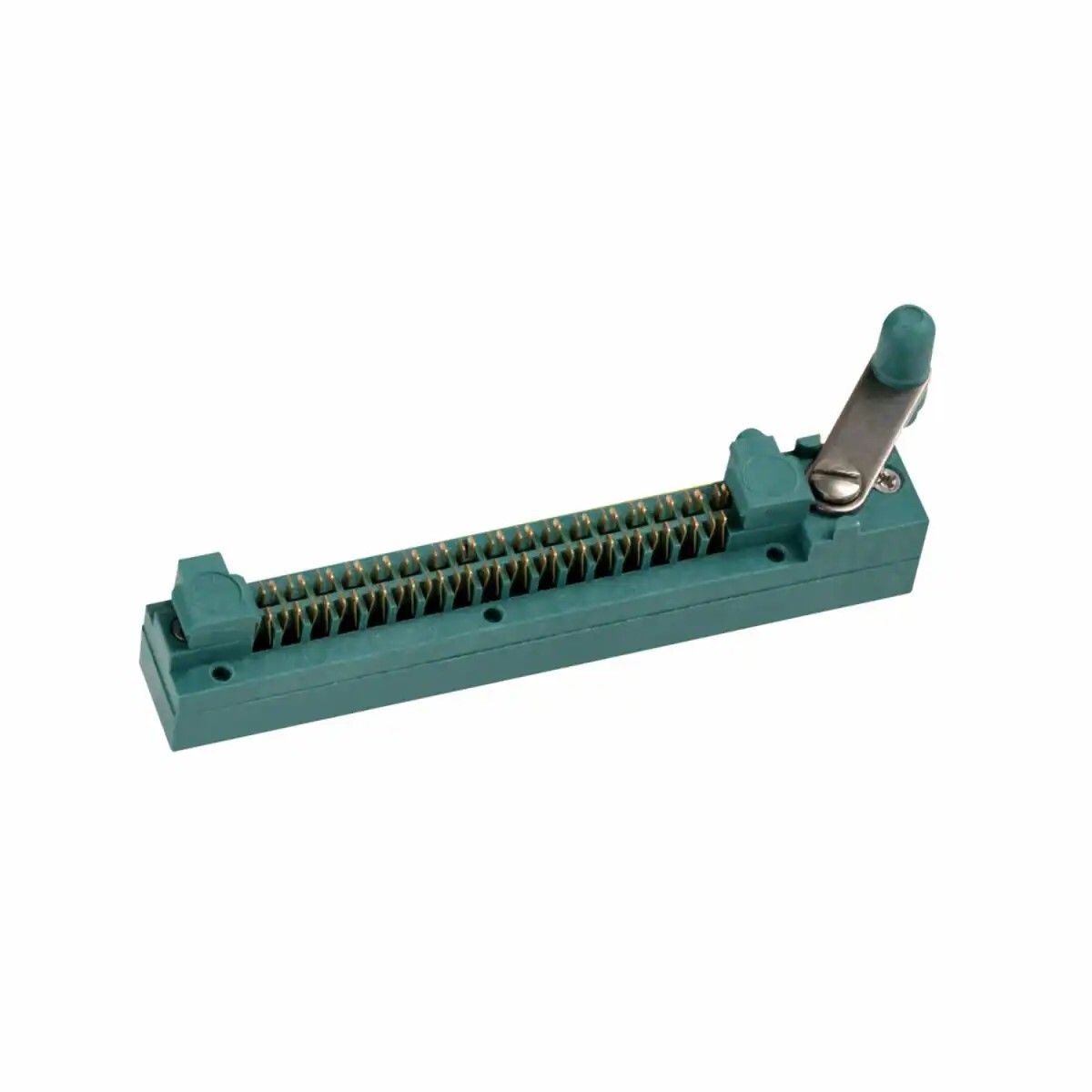

Same model may have multiple batches, images only for reference.

251-5949-02-0602

Part No 251-5949-02-0602
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description CONN ZIG-ZAG ZIF 51POS GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Zig-Zag, ZIF (ZIP)
Number of Positions or Pins (Grid) 51 (1 x 25, 1 x 26)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post 30.0µin (0.76µm)
Contact Material - Post Beryllium Copper
Housing Material Polysulfone (PSU), Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629570-251-5949-02-0602
Ultra Librarian 3D Model Ultra Librarian 251-5949-02-0602 CAD Model
