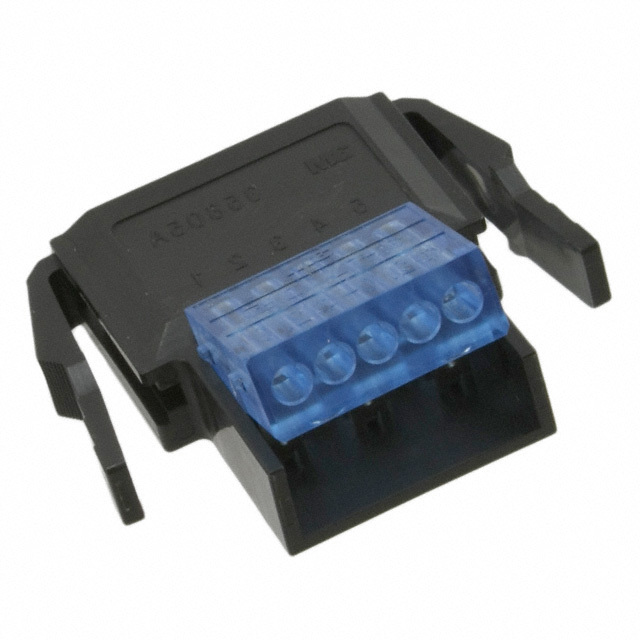

Same model may have multiple batches, images only for reference.
35605-5153-AP0PE 3M – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

35605-5153-AP0PE

Part No 35605-5153-AP0PE
Manufacturer 3M
Catalog Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 5POS 3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.118" (3.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.366" (9.30mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide, Board Lock
Temperature Range - Operating -20°C ~ 75°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1626443-35605-5153-AP0PE
Ultra Librarian 3D Model Ultra Librarian 35605-5153-AP0PE CAD Model
