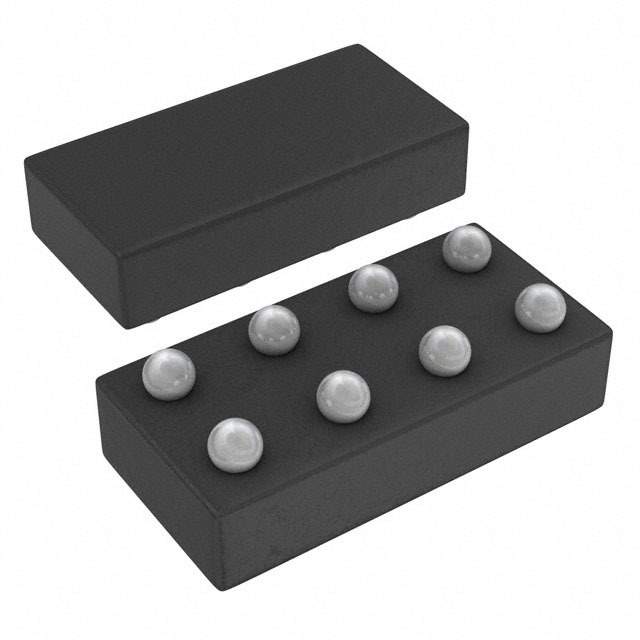

SN74AUP3G14YFPR Triple Schmitt-Trigger Inverter from Texas Instruments

The SN74AUP3G14YFPR is a state-of-the-art logic gate IC from Texas Instruments, designed to meet the requirements of modern electronic systems. This advanced triple Schmitt-trigger inverter is part of Texas Instruments' AUP (Advanced Ultra-low Power) family, offering an optimal balance between speed and power consumption in a compact package.

With its ultra-low power consumption, the SN74AUP3G14YFPR is particularly suitable for battery-powered and portable applications, where power efficiency is crucial. The device operates over a broad voltage range from 0.8V to 3.6V, which allows it to be used in systems that require low-voltage operation to further conserve energy.

The Schmitt-trigger inputs of the SN74AUP3G14YFPR provide it with excellent noise immunity, making it a reliable choice for use in environments with high electrical noise. This feature ensures that the device can maintain stable output levels even when the input signals are subject to significant fluctuations.

Each inverter in the SN74AUP3G14YFPR is capable of driving up to 10 LSTTL loads, which provides the flexibility to interface with various types of digital circuits. The device is offered in a compact DSBGA package, which is ideal for space-constrained applications.

Key features of the SN74AUP3G14YFPR include:

• Low static-power consumption (I<sub>CC)
• Low dynamic-power consumption (C<sub>pd)
• Wide operating voltage range (0.8V to 3.6V)
• Edge-rate control circuitry for fast output transition
• IOFF supports live insertion, partial power-down mode, and back-drive protection
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22

The SN74AUP3G14YFPR is an ideal choice for designers looking to incorporate a high-performance inverter with Schmitt-trigger inputs into their systems. Its ultra-low power characteristics, combined with its robust noise immunity and compatibility with various logic levels, make it a versatile and reliable component for a wide range of applications including smartphones, personal electronics, and IoT devices.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments website or consult the SN74AUP3G14YFPR datasheet.
