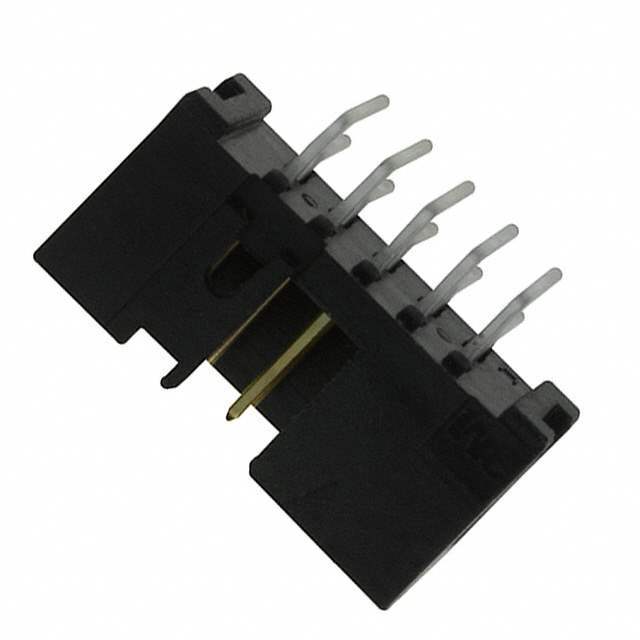

D2510-5002-AR 3M
Same model may have multiple batches, images only for reference.

D2510-5002-AR

Part No D2510-5002-AR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208021-D2510-5002-AR
Manufacturer 3M
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Series D2500
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Row Spacing - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian D2510-5002-AR CAD Model

Description

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
