Same model may have multiple batches, images only for reference.

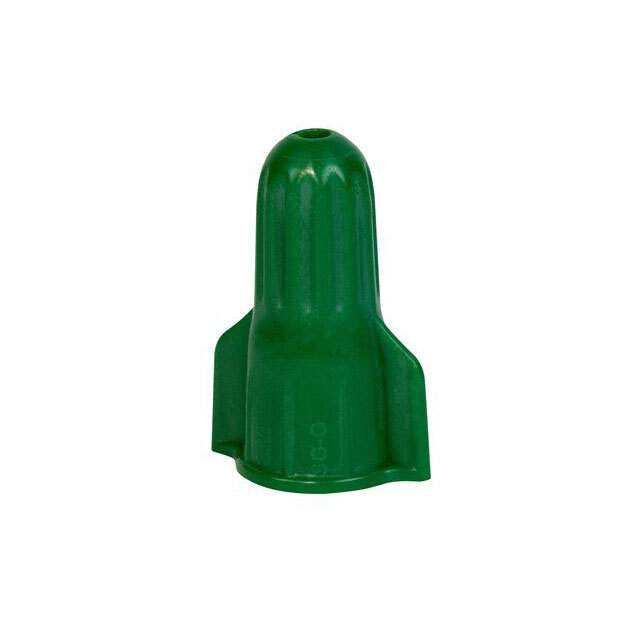

SG-G BAG Real Image
Same model may have multiple batches, images only for reference.

SG-G BAG

Part No SG-G BAG
Manufacturer 3M
Catalog Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Wire Splice Connectors
Mfr 3M
Series Secure Grip
Package Bulk
Terminal Type Twist On Wire Cap, Wing
Number of Wire Entries Varies by Wire Size
Termination Twist On
Wire Gauge 10-14 AWG
Insulation Fully Insulated
Features Copper Wire Only
Color Green
Base Product Number SG-G
Other Names 3M163025,7100180515,76308926069,80000214645
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8546.90.0000
Win Source Part Number 1285137-SG-G BAG
Ultra Librarian 3D Model Ultra Librarian SG-G BAG CAD Model

Description

The Secure Grip series twist-on wire cap is a fully insulated terminal for wire splicing.

  • Suitable For: Copper Wire Only
  • Wire Gauge: 10-14 AWG
  • Color: Green
  • Package: Bulk
  • Standard Package: 500
  • Terminal Type: Wing Type Twist-On Wire Cap
  • Number of Wire Entries: Varies depending on the wire size
  • Insulation: Fully Insulated
  • ECCN: EAR99
  • HTSUS: 8546.90.0000
