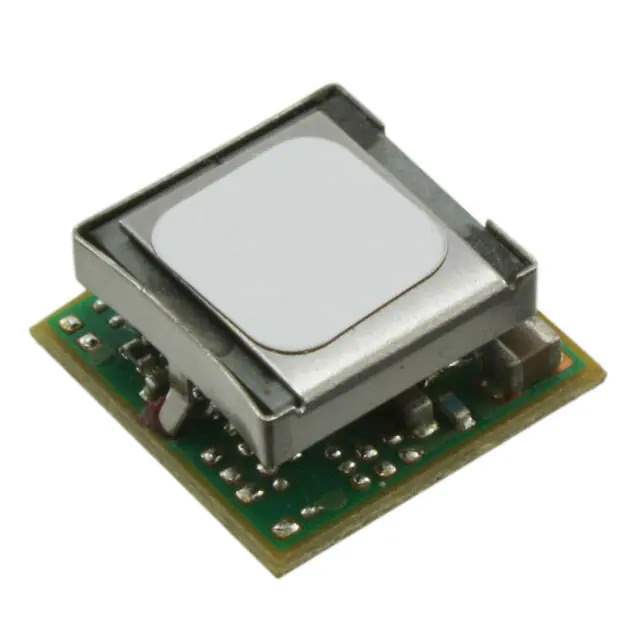

APXH006A0X4-SRZ Real Image
Same model may have multiple batches, images only for reference.

APXH006A0X4-SRZ

Part No APXH006A0X4-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-3.6V 21W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series PicoTLynx™
Package Tape & Reel
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6 ~ 3.6V
Current - Output (Max) 6A
Power (Watts) 21 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 10-SMD Module
Size / Dimension 0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm)
Control Features Enable, Active High
Standard Package 400 pcs
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 564316-APXH006A0X4-SRZ
Ultra Librarian 3D Model Ultra Librarian APXH006A0X4-SRZ CAD Model

Description

The PicoTLynx™ 564316-APXH006A0X4-SRZ is a non-isolated PoL module designed for power supplies in board mount applications manufactured by ABB Embedded Power.

  • Power Rating: 21W
  • Maximum Output Current: 6A
  • Protection Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), Undervoltage Lockout (UVLO)
  • Input Voltage Range: 2.4V to 5.5V
  • Output Voltage Range: 0.6V to 3.6V
  • Mounting: Surface Mount
  • Package: 10-SMD
  • Operating Temperature: -40°C to 85°C
  • Application: Commercial
  • Status: Obsolete
  • Standard Package: 400 pcs
