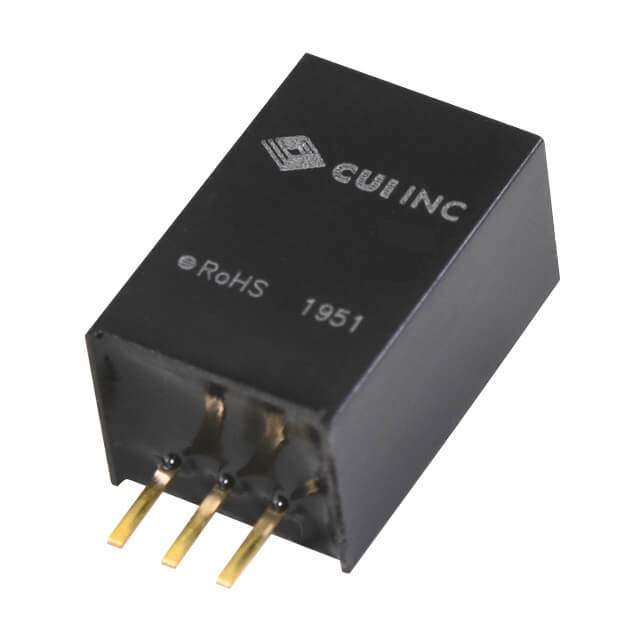

Same model may have multiple batches, images only for reference.

P7803-2000-S

Name: P7803-2000-S
Brand: CUI Inc.
SKU: 1341156
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	P7803-2000-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 6.6W / Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 2A 6V - 36V Input
Datasheet	P7803-2000-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	P78-2000-S
Package	Tube
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	6V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	2A
Power (Watts)	6.6 W
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	87%
Mounting Type	Through Hole
Package / Case	3-SIP Module
Size / Dimension	0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Approval Agency	EN
Standard Number	55024; 55032 Class A
Base Product Number	P7803
Standard Package	44
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1341156-P7803-2000-S
Ultra Librarian 3D Model	Ultra Librarian P7803-2000-S CAD Model

Alternative Products

Description

The P7803-2000-S is a non-isolated PoL module from CUI Inc. that is used in power supplies - board mount - DC DC converters manufactured by CUI Inc..

Power (Watts): 6.6 W
Current - Output: 2A
Efficiency: 87%
Package / Case: 3-SIP Module
Voltage - Input (Min): 6V
Voltage - Input (Max): 36V
Voltage - Output: 3.3V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 85°C (With Derating)
MSL: 1 (Unlimited)
HTSUS: 8504.40.9580
Base Product Number: P7803
Approval Agency: EN
Standard Numbers: 55024; 55032 Class A
