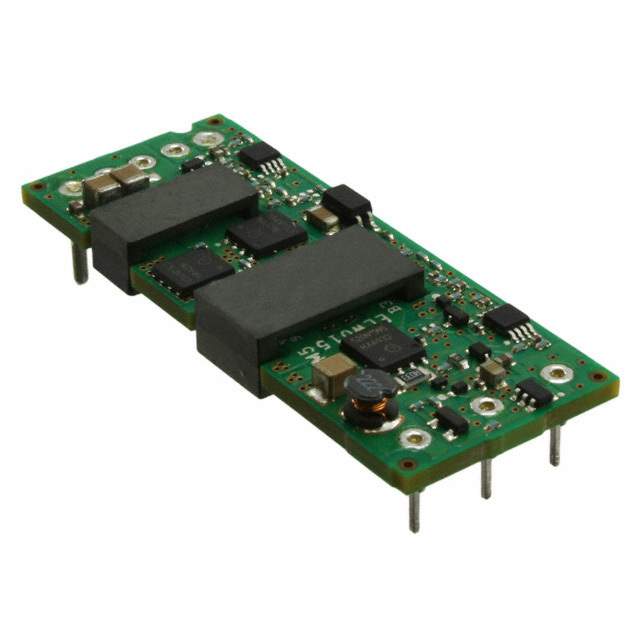

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series STINGRAY™ ESTW015A0F
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 15A
Power (Watts) 50 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number ESTW015
Other Names CC109158085,555-1176
Standard Package 36
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237769-ESTW015A0F41Z
Ultra Librarian 3D Model Ultra Librarian ESTW015A0F41Z CAD Model

Description

The STINGRAY™ ESTW015A0F is an isolated module DC-DC converter that is designed for ITE (Commercial) applications.

  • Manufacturer: ABB Power Electronics Inc.
  • Product Name: STINGRAY™ ESTW015A0F
  • Type: Isolated Module DC-DC Converter
  • Application: ITE (Commercial)
  • Features: Remote On/Off, overcurrent protection (OCP), over-temperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO)
  • Power Output: 50 W
  • Maximum Output Current: 15 A
  • Voltage Input Range: 36 V to 75 V
  • Voltage Output: 3.3 V
  • Mounting Type: Through Hole
  • Package: 8-DIP module, 1/8 Brick
  • Voltage Isolation: 2.25 kV
  • Operating Temperature: Not Specified
  • Dimensions: 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm)
  • ECCN: EAR99
