Same model may have multiple batches, images only for reference.

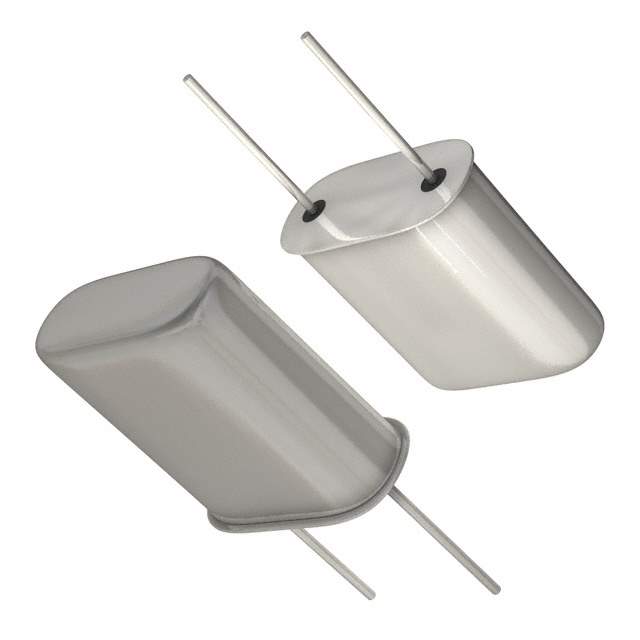

AB-1.8432MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

AB-1.8432MHZ-B2

Part No AB-1.8432MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 1.8432MHZ 18PF TH / 1.8432 MHz ±20ppm Crystal 18pF 750 Ohms HC-49/U
Datasheet
AB-1.8432MHZ-B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series AB
Package Bulk
Type MHz Crystal
Frequency 1.8432 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 750 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/U
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.530" (13.46mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Other Names 300-9009-ND,535-9009,300-9009
Standard Package 1,000
Win Source Part Number 1042421-AB-1.8432MHZ-B2
Ultra Librarian 3D Model Ultra Librarian AB-1.8432MHZ-B2 CAD Model

Description

The AB series crystal manufactured by Abracon LLC is a high-performance MHz crystal oscillator that features a frequency of 1.8432 MHz, a frequency tolerance of ±20ppm, and a load capacitance of 18pF.

  • Packaging: Bulk
  • Standard Package: 1000
  • Mounting Type: Through Hole
  • Height: 0.530" (13.46mm)
  • Operating Temperature: -20°C to 70°C
  • Frequency: 1.8432 MHz
  • ESR: 750 Ohms
  • Frequency Stability: ±100ppm
  • ECCN: EAR99
