Same model may have multiple batches, images only for reference.

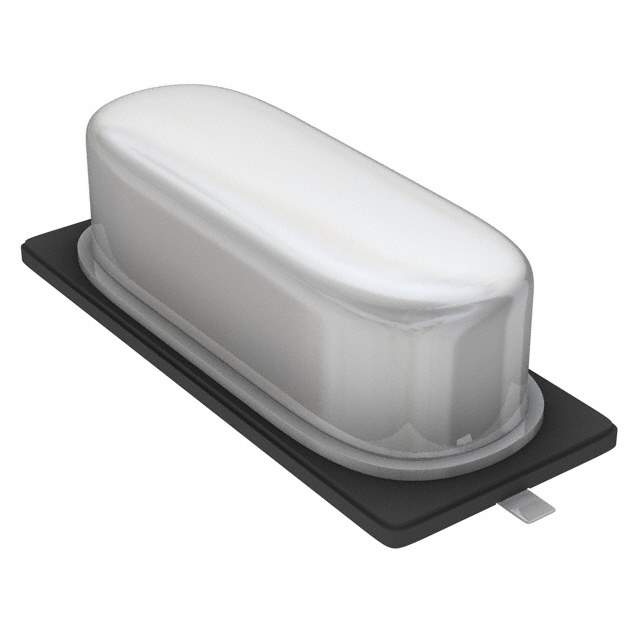

ABLS2-8.000MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-8.000MHZ-D4Y-T

Part No ABLS2-8.000MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF SMD / 8 MHz ±30ppm Crystal 18pF 80 Ohms HC-49/US
Datasheet
ABLS2-8.000MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names ABLS28000MHZD4YT,535-9864-6,535-9864-2,535-9864-1
Standard Package 1,000
Win Source Part Number 1030969-ABLS2-8.000MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-8.000MHZ-D4Y-T CAD Model

Description

The Abracon LLC 1030969-ABLS2-8.000MHZ-D4Y-T crystal is a MHz crystal that belongs to the ABLS2 series.

  • Frequency: 8 MHz
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Operating Temperature Range: -40°C to 85°C
  • Package: HC-49/US
  • Packaging: tape and reel
  • Height: 0.130" (3.30mm)
  • Mounting Type: SMD (SMT)
  • Standard Package: 1,000
  • REACH: affected by REACH
  • HTSUS Classification: 8541.60.0050
  • Other Part Numbers: 9C-8.000MAAJ-T, ABLS3-8.000MHZ-D4Y-T, 9B-8.000MAAJ-B, and ABLS2-8.192MHZ-D4Y-T
