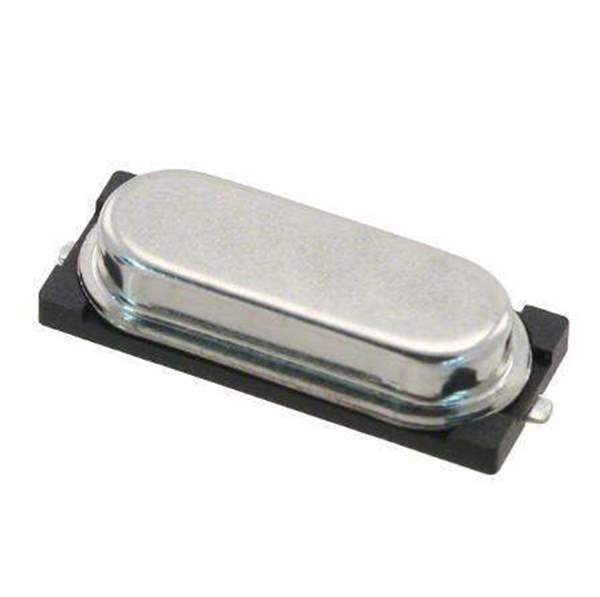

ABLS7M-16.000MHZ-B-2-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABLS7M-16.000MHZ-B-2-T

Part No ABLS7M-16.000MHZ-B-2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 16.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Temperature -20°C ~ 70°C
Mounting Type Surface Mount
Size / Dimension 0.276" L x 0.161" W (7.00mm x 4.10mm)
Win Source Part Number WS1305567-ABLS7M-16.000MHZ-B-2-T
Ultra Librarian 3D Model Ultra Librarian ABLS7M-16.000MHZ-B-2-T CAD Model

Description

FEATURES：
• Reduced footprint from ABLS (standard HC/49US package) by 50%
• Low profile: 2.0mm max. height
• Suitable for RoHS compliant reflow
• Tight stability & extended temperature options
• High reliability & Cost effective
• Resistance welded metal package
