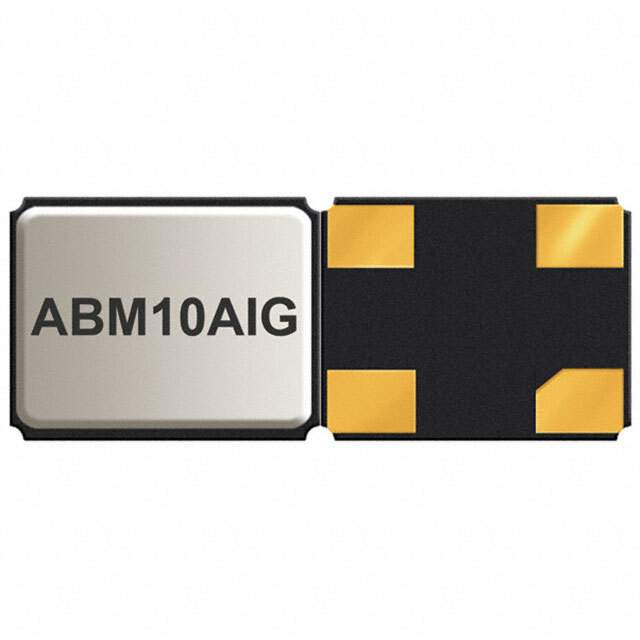

ABM10AIG-25.000MHZ-4Z-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM10AIG-25.000MHZ-4Z-T3

Part No ABM10AIG-25.000MHZ-4Z-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 25.0000MHZ 10PF SMD / 25 MHz ±30ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Datasheet
ABM10AIG-25.000MHZ-4Z-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10AIG
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.026" (0.65mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-13365-1,535-13365-2,535-13365-6
Standard Package 3,000
Win Source Part Number 1193381-ABM10AIG-25.000MHZ-4Z-T3
Ultra Librarian 3D Model Ultra Librarian ABM10AIG-25.000MHZ-4Z-T3 CAD Model

Description

Abracon LLC's 1193381-ABM10AIG-25.000MHZ-4Z-T3 is a MHz crystal in tape and reel package.

  • Mounting Type: SMD (SMT)
  • Frequency: 25 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • ESR: 60 Ohms
  • Load Capacitance: 10pF
  • Operating Mode: Fundamental
  • Operating Temperature: -40°C ~ 125°C
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Maximum): 0.026" (0.65mm)
  • Supply and Demand: Sufficient
  • Package: Tape and Reel
