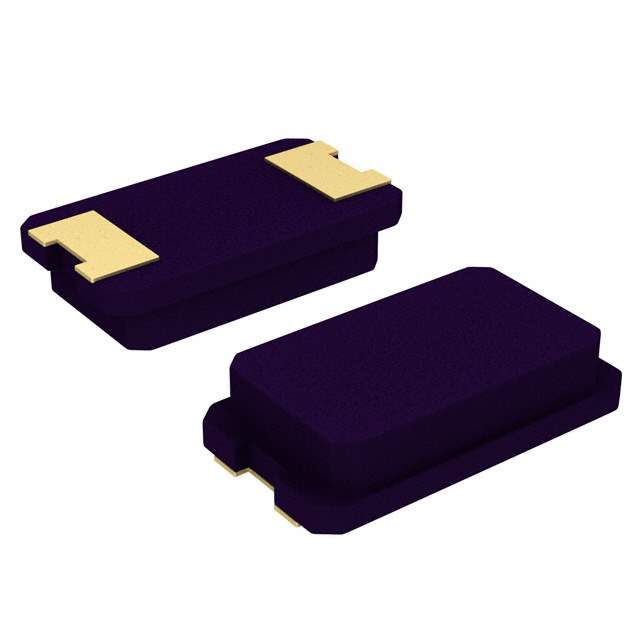

ABM7-25.000MHZ-B4-T Real Image
Same model may have multiple batches, images only for reference.

ABM7-25.000MHZ-B4-T

Part No ABM7-25.000MHZ-B4-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 25.0000MHZ 18PF SMD / 25 MHz ±30ppm Crystal 18pF 50 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABM7
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.055" (1.40mm)
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1351893-ABM7-25.000MHZ-B4-T
Ultra Librarian 3D Model Ultra Librarian ABM7-25.000MHZ-B4-T CAD Model

Description

The ABM7 series MHz Crystal from Abracon LLC is a high-quality crystal that can be used in various electronic devices.

  • Series: ABM7
  • Package / Case: 2-SMD, No Lead
  • Size / Dimension: 0.236" L x 0.138" W (6.00mm x 3.50mm)
  • Height - Seated (Max): 0.055" (1.40mm)
  • Frequency: 25 MHz
  • Frequency Stability: ±50ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Operating Temperature: -20°C to 70°C
  • ECCN: EAR99
  • REACH: Affected
  • HTSUS: 8541.60.0060
