Same model may have multiple batches, images only for reference.

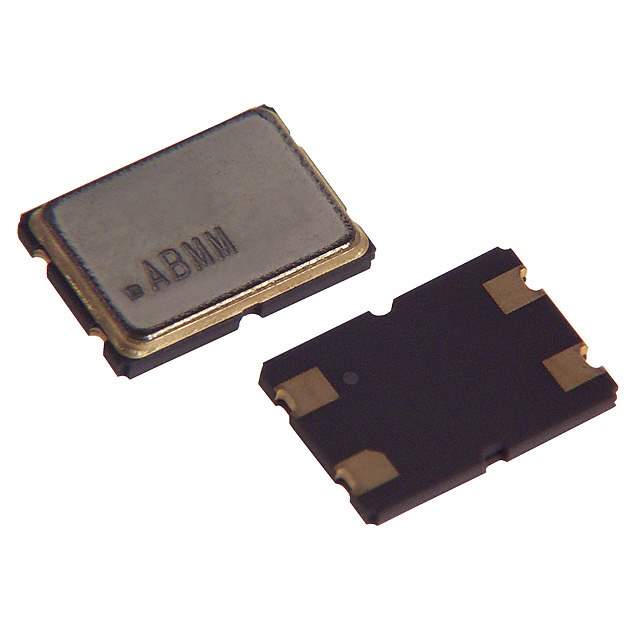

ABMM-7.3728MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABMM-7.3728MHZ-B2-T

Part No ABMM-7.3728MHZ-B2-T
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ABMM-7.3728MHZ-B2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABMM
Package Tape & Reel
Type MHz Crystal
Frequency 7.3728 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 70 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.051" (1.30mm)
Other Names 535-9825-1,535-9825-2,ABMM73728MHZB2T,535-9825-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1285008-ABMM-7.3728MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABMM-7.3728MHZ-B2-T CAD Model

Description

The Abracon LLC crystal with a win source part number of 1285008-ABMM-7.3728MHZ-B2-T belongs to the ABMM series and has a MHz crystal type.

  • Series: ABMM
  • Win Source Part Number: 1285008-ABMM-7.3728MHZ-B2-T
  • Crystal Type: MHz crystal
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Frequency: 7.3728 MHz
  • ESR (Equivalent Series Resistance): 70 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Operating Temperature: -20°C ~ 70°C
