Same model may have multiple batches, images only for reference.

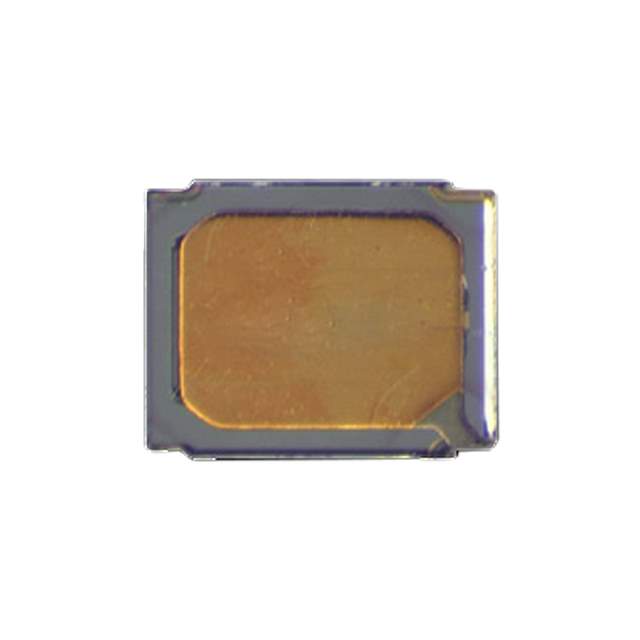

ABS04W-32.768KHZ-6-B3-T5 Real Image
Same model may have multiple batches, images only for reference.

ABS04W-32.768KHZ-6-B3-T5

Part No ABS04W-32.768KHZ-6-B3-T5
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 6PF SMD / 32.768 kHz ±30ppm Crystal 6pF 130 kOhms 4-SMD, No Lead
Datasheet
ABS04W-32.768KHZ-6-B3-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS04W
Package Tape & Reel (TR)
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±30ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 130 kOhms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.047" L x 0.039" W (1.20mm x 1.00mm)
Height - Seated (Max) 0.014" (0.35mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Standard Package 5,000
Win Source Part Number 1120635-ABS04W-32.768KHZ-6-B3-T5
Ultra Librarian 3D Model Ultra Librarian ABS04W-32.768KHZ-6-B3-T5 CAD Model

Description

The ABS04W-32.768KHZ-6-B3-T5 is a kHz crystal from Abracon LLC.

  • Series: ABS04W
  • Frequency: 32.768 kHz
  • Load Capacitance: 6pF
  • ESR: 130 kOhms
  • Package/Case: 4-SMD, No Lead
  • Height: 0.014" (0.35mm)
  • Dimension: 0.047" L x 0.039" W (1.20mm x 1.00mm)
  • Operating Temperature: -20°C and 70°C
  • Package: Tape & Reel (TR)
  • Standard Package: 5,000 pieces
