Same model may have multiple batches, images only for reference.

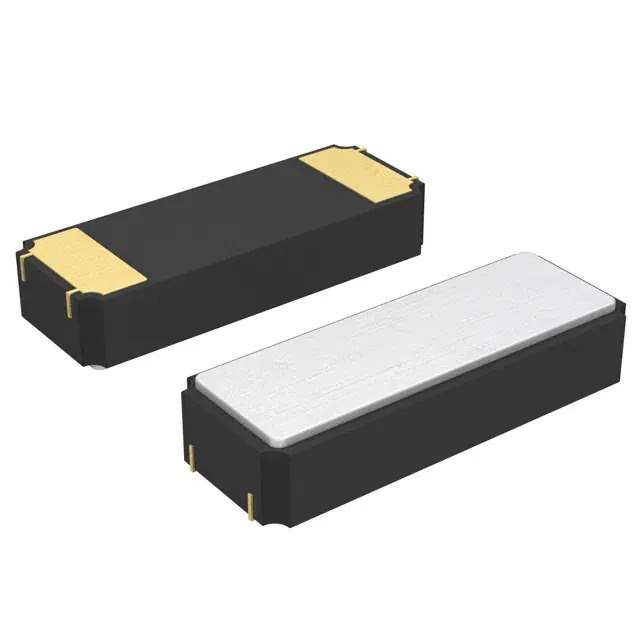

ABS09-32.768KHZ-T Real Image
Same model may have multiple batches, images only for reference.

ABS09-32.768KHZ-T

Part No ABS09-32.768KHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 12.5PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS09
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.161" L x 0.059" W (4.10mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 852879-ABS09-32.768KHZ-T
Ultra Librarian 3D Model Ultra Librarian ABS09-32.768KHZ-T CAD Model

Description

The ABS09 kHz Crystal is a high-quality component for crystal oscillators and resonators.

  • Series: ABS09
  • Design: Excellent performance and stability
  • Mounting: Surface mount applications
  • Package: Tape and reel
  • Frequency: 32.768 kHz
  • Load Capacitance: 12.5pF
  • Manufacturer: Abracon LLC
  • Status: Active
  • ECCN: EAR99
  • HTSUS Code: 8541.60.0010
