Same model may have multiple batches, images only for reference.

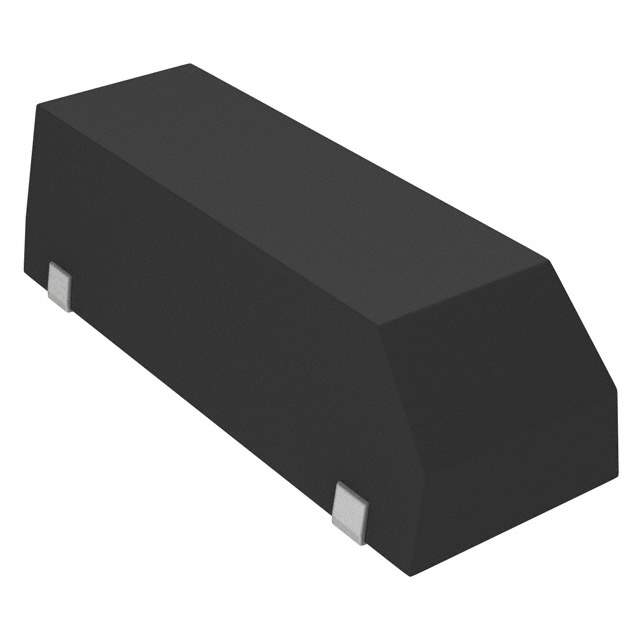

ABSM2-8.192MHz-4-T Real Image
Same model may have multiple batches, images only for reference.

ABSM2-8.192MHz-4-T

Part No ABSM2-8.192MHz-4-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 8.1920MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Abracon LLC
Packaging Reel
Part Status Obsolete (End Of Life)
Type MHz Crystal
Frequency 8.192MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Style SMD
Manufacturer Package 4-SOJ, 9.40mm pitch
Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Maximum) 0.146" (3.70mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809172-ABSM2-8.192MHz-4-T
Ultra Librarian 3D Model Ultra Librarian ABSM2-8.192MHz-4-T CAD Model

Description

This electronic component 809172-ABSM2-8.192MHz-4-T is a MHz crystal from Abracon LLC.

  • Mounting Style: SMD
  • Frequency: 8.192MHz
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Product Status: Obsolete (end of life)
  • Popularity: Medium
  • Supply and Demand Status: Limited
