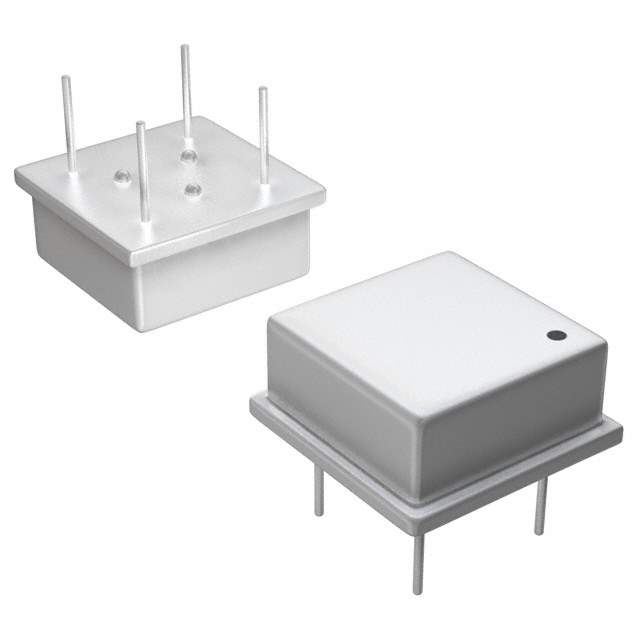

ACHL-10.000MHZ-EK Real Image
Same model may have multiple batches, images only for reference.

ACHL-10.000MHZ-EK

Part No ACHL-10.000MHZ-EK
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 10.0000MHZ HCMOS TTL / 10 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V 8-DIP, 4 Leads (Half Size, Metal Can)
Datasheet
ACHL-10.000MHZ-EK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ACHL
Package Tube
Base Resonator Crystal
Type XO (Standard)
Frequency 10 MHz
Output HCMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±30ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 20mA
Mounting Type Through Hole
Package / Case 8-DIP, 4 Leads (Half Size, Metal Can)
Dimension 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height - Seated (Max) 0.217" (5.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 300-9185-5-ND,535-9185-5,300-9185-5
Standard Package 40
Win Source Part Number 1018706-ACHL-10.000MHZ-EK
Ultra Librarian 3D Model Ultra Librarian ACHL-10.000MHZ-EK CAD Model

Description

The ACHL series XO oscillator is a high-reliability device that is designed and manufactured by Abracon LLC.

  • Package: Tube
  • Mounting: Through Hole
  • Frequency: 10 MHz
  • Frequency Stability: ±30ppm
  • Voltage Supply: 3.3V
  • Maximum Current Supply: 20mA
  • Output: HCMOS and TTL
  • Temperature Range: -20°C to 70°C
  • Resonator: Crystal-based
