Same model may have multiple batches, images only for reference.

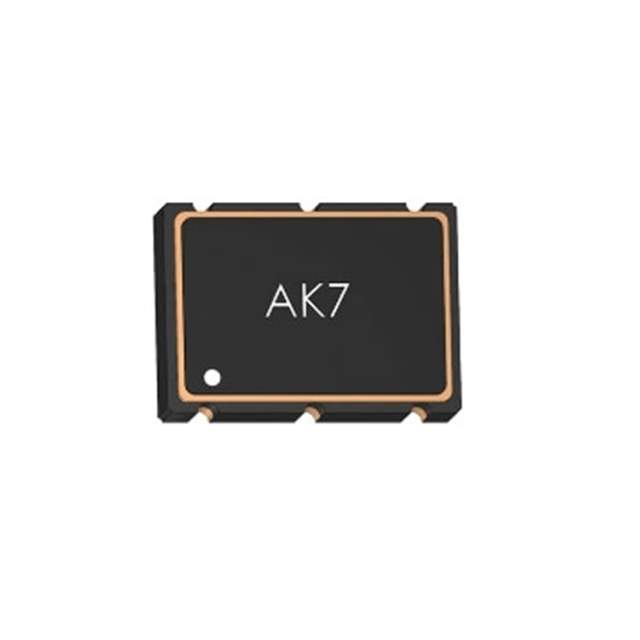

AK7DBF1-148.5000T2 Real Image
Same model may have multiple batches, images only for reference.

AK7DBF1-148.5000T2

Part No AK7DBF1-148.5000T2
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 148.5MHZ 2.5V LVDS / 148.5 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AK7
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 148.5 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 27mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349737-AK7DBF1-148.5000T2
Ultra Librarian 3D Model Ultra Librarian AK7DBF1-148.5000T2 CAD Model

Description

The AK7DBF1-148.5000T2 is an oscillator from the ClearClock™ AK7 series, manufactured by Abracon LLC. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Series: ClearClock™ AK7
  • Manufacturer: Abracon LLC
  • Type: XO (standard)
  • Frequency: 148.5 MHz
  • Frequency Stability: ±25ppm
  • Output: LVDS
  • Supply Voltage: 2.5V
  • Packaging: Tape and Reel
  • Standard Package: 250
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Applications: Telecommunications, networking, and data communication
