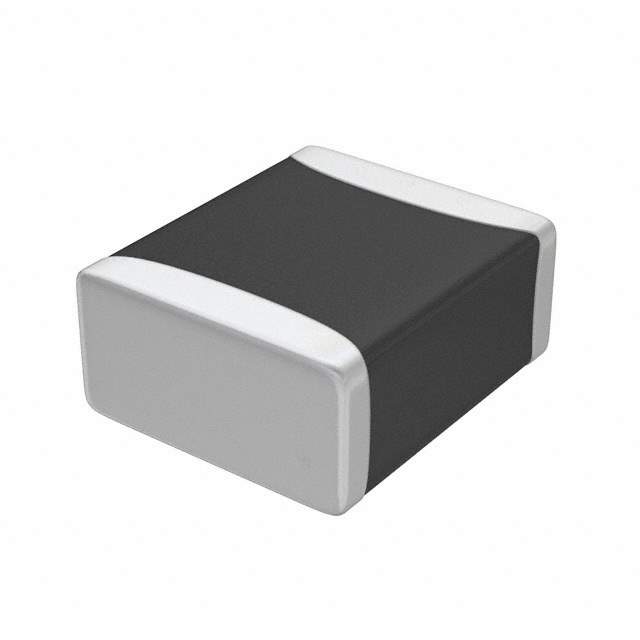

AMCV-2220H-180-T Real Image
Same model may have multiple batches, images only for reference.

AMCV-2220H-180-T

Part No AMCV-2220H-180-T
Manufacturer Abracon LLC
Catalog TVS - Varistors, MOVs
Description VARISTOR 25V 1.2KA 2220 / 25 V 1.2 kA Varistor 1 Circuit Surface Mount, MLCV 2220 (5750 Metric)
Datasheet
AMCV-2220H-180-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Abracon LLC
Package Tape & Reel (TR),Cut Tape (CT)
Maximum AC Volts 12.7 V
Maximum DC Volts 18 V
Varistor Voltage (Min) 22 V
Varistor Voltage (Typ) 25 V
Varistor Voltage (Max) 28 V
Current - Surge 1.2 kA
Energy 5.8J
Number of Circuits 1
Capacitance @ Frequency 5000 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 2220 (5750 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names -AMCV-2220H-180-T,AMCV-2220H-180-T-ND,535-12905-2,535-12905-1,-535-12905-2,-AMCV-2220H-180-T-ND,-535-12905-1
Standard Package 3,000
Win Source Part Number 1177844-AMCV-2220H-180-T
Ultra Librarian 3D Model Ultra Librarian AMCV-2220H-180-T CAD Model

Description

The 1177844-AMCV-2220H-180-T is a TVS Varistor circuit protection component from Abracon LLC.

  • Capacitance: 5000 pF @ 1 kHz
  • Varistor Voltage Range: 22 V to 28 V
  • Surge Current: Up to 1.2 kA
  • Maximum AC Voltage: 12.7 V
  • Maximum DC Voltage: 18 V
  • Package: 2220 (5750 Metric)
  • Mounting Type: Surface mountable
  • Operating Temperature Range: -55°C to 85°C
  • Energy Rating: 5.8J
  • Ideal For: Applications that require circuit protection against transient voltage spikes caused by lightning or electrostatic discharge.
