Same model may have multiple batches, images only for reference.

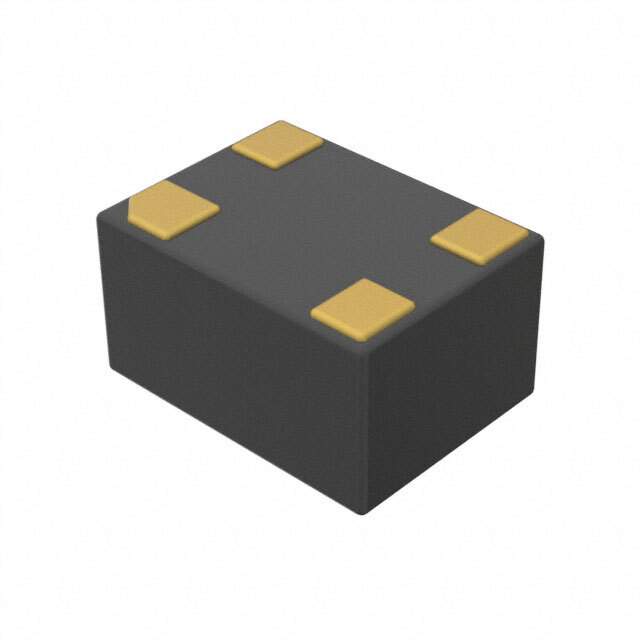

AMPMGFC-80.0000T3 Real Image
Same model may have multiple batches, images only for reference.

AMPMGFC-80.0000T3

Part No AMPMGFC-80.0000T3
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 80.0000MHZ CMOS SMD  /  80 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
AMPMGFC-80.0000T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 80 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.035" (0.89mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1128429-AMPMGFC-80.0000T3
Ultra Librarian 3D Model Ultra Librarian AMPMGFC-80.0000T3 CAD Model

Description

Abracon LLC's 1128429-AMPMGFC-80.0000T3 is a XO (Standard) type oscillator in tape and reel package.

  • Type: XO (Standard)
  • Package: Tape and Reel
  • Mounting: SMD (SMT)
  • Frequency: 80 MHz
  • Frequency Stability: ±25ppm
  • Voltage Supply: 1.71V ~ 3.63V
  • Temperature Range: -40°C ~ 85°C
  • Dimension: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Height: 0.035" (0.89mm)
  • Supply and Demand Status: Sufficient
