Same model may have multiple batches, images only for reference.

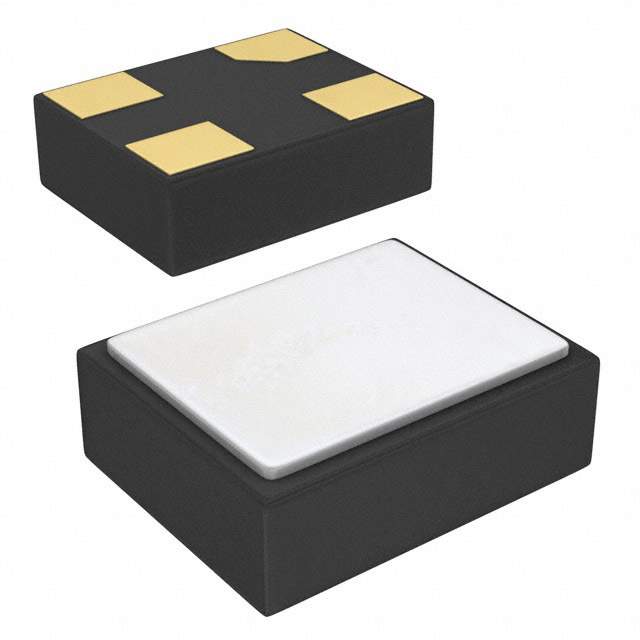

ASA-25.000MHZ-L-T Real Image
Same model may have multiple batches, images only for reference.

ASA-25.000MHZ-L-T

Part No ASA-25.000MHZ-L-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ HCMOS SMD  /  25 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASA-25.000MHZ-L-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASA
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 10mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-11711-2,535-11711-1,ASA25000MHZLT,535-11711-6
Standard Package 1,000
Win Source Part Number 964956-ASA-25.000MHZ-L-T
Ultra Librarian 3D Model Ultra Librarian ASA-25.000MHZ-L-T CAD Model

Description

The ASA-25.000MHZ-L-T is a crystal oscillator with a frequency of 25 MHz.

  • Type: XO (Standard)
  • Frequency: 25 MHz
  • Height: 0.031" (0.80mm)
  • Package: Tape and Reel
  • Frequency Stability: ±50ppm
  • Current Supply: 10mA
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C ~ 85°C
  • Package/Case: 4-SMD, No Lead
  • Standard Package: 1,000
  • Manufacturer: Abracon LLC
  • REACH: Unaffected
