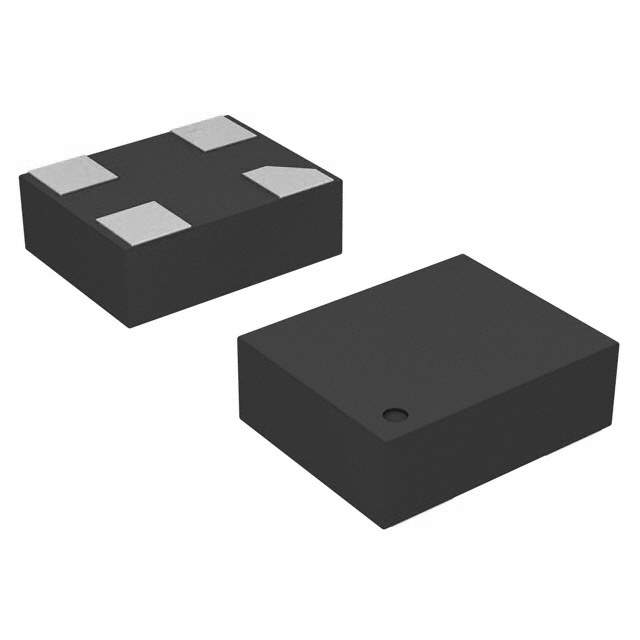

ASDM1-100.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASDM1-100.000MHZ-LC-T

Part No ASDM1-100.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ASDM1-100.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASDM, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Other Names 535-9804-1,ASDM1100000MHZLCT,535-9804-2,535-9804-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284972-ASDM1-100.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASDM1-100.000MHZ-LC-T CAD Model

Description

The ASDM1-100.000MHZ-LC-T is a crystal oscillator module manufactured by Abracon LLC.

  • Category: Crystals, Oscillators, Resonators
  • Series: ASDM, Pure Silicon™
  • Type: Standard XO (Standard)
  • Frequency: 100 MHz
  • Function: Standby (power down)
  • Output: LVCMOS
  • Frequency Stability: ±50ppm
  • Voltage Supply: 3.3V
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -40°C ~ 85°C
  • Technology: MEMS
  • APR: -
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
