Same model may have multiple batches, images only for reference.

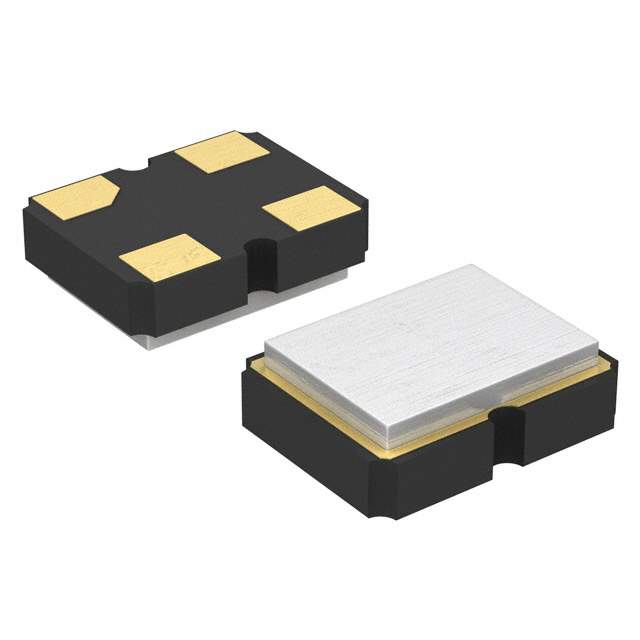

ASE2-25.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASE2-25.000MHZ-LC-T

Part No ASE2-25.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ CMOS SMD  /  25 MHz XO (Standard) CMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Datasheet
ASE2-25.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASE2
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 8mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names ASE2-25.000MHZ-L-C-T,535-13487-1-ND,ASE2-25.000MHZ-LC-T,535-13487-2-ND,535-ASE2-25.000MHZ-LC-TDKR,535-13487-1,535-ASE2-25.000MHZ-LC-TTR,535-13487-6-ND,535-13487-2,535-ASE2-25.000MHZ-LC-TCT,535-13487-6
Standard Package 1,000
Win Source Part Number 1120356-ASE2-25.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASE2-25.000MHZ-LC-T CAD Model

Description

The ASE2-25.000MHZ-LC-T is a standard XO (oscillator) that is designed for use in electronic circuits.

  • Frequency: 25 MHz
  • Frequency Stability: ±50ppm
  • Package: Tape and Reel
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • Height-Seated (Max): 0.047" (1.20mm)
