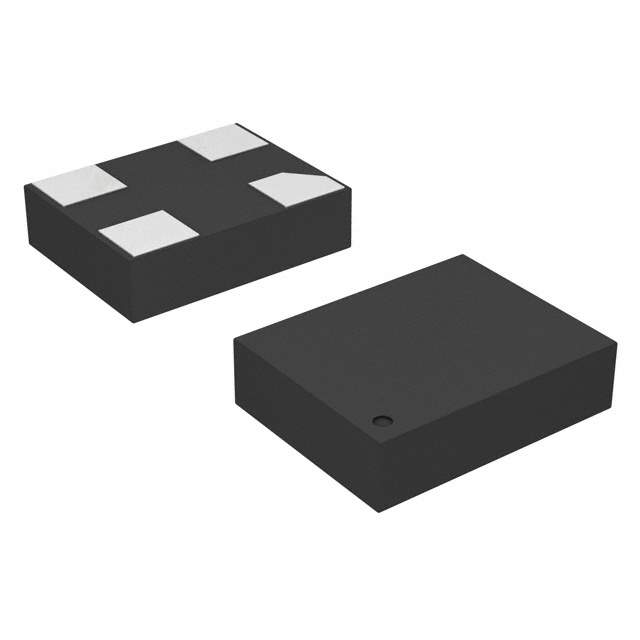

ASEM1-29.4912MHZ-LC-T

Part No ASEM1-29.4912MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 29.4912MHZ CMOS SMD / 29.4912 MHz XO (Standard) CMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASEM, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 29.4912 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 1µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1341509-ASEM1-29.4912MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASEM1-29.4912MHZ-LC-T CAD Model

Description

The ASEM series is a Pure Silicon™ XO (Standard) oscillator, offered by Abracon LLC.

  • Frequency: 29.4912 MHz
  • Frequency Stability: ±50 ppm
  • Current Supply: 15 mA (maximum)
  • Output: CMOS
  • Package: 4-SMD, No Lead
  • Seated Height: 0.035 inches (0.90 mm)
  • Size/Dimension: 0.126 inches L x 0.098 inches W (3.20 mm x 2.50 mm)
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C to 85°C
  • Application: Standby (power down)
