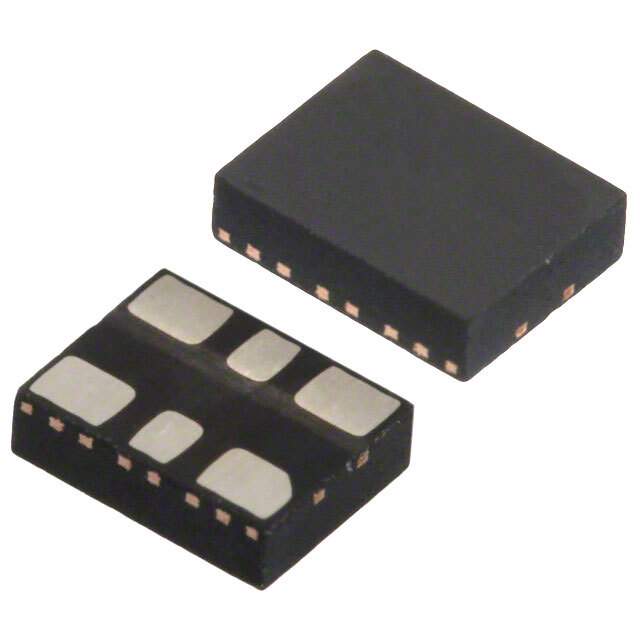

Same model may have multiple batches, images only for reference.

ASEMPLV-100.000MHZ-LR-T

Name: ASEMPLV-100.000MHZ-LR-T
Brand: Abracon LLC
SKU: 1340147
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ASEMPLV-100.000MHZ-LR-T
Manufacturer	Abracon LLC
Catalog	Oscillators
Description	MEMS OSC XO 100.0000MHZ LVDS SMD / 100 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Datasheet	ASEMPLV-100.000MHZ-LR-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Oscillators
Mfr	Abracon LLC
Series	ASEMP, Pure Silicon™
Package	Tape & Reel
Base Resonator	MEMS
Type	XO (Standard)
Frequency	100 MHz
Function	Enable/Disable
Output	LVDS
Voltage - Supply	2.25V ~ 3.6V
Frequency Stability	±25ppm
Temperature Range - Operating	-40°C ~ 85°C
Current - Supply (Max)	35mA
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.035" (0.90mm)
Current - Supply (Disable) (Max)	26mA
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1340147-ASEMPLV-100.000MHZ-LR-T
Ultra Librarian 3D Model	Ultra Librarian ASEMPLV-100.000MHZ-LR-T CAD Model

Alternative Products

Description

The 1340147-ASEMPLV-100.000MHZ-LR-T is a Pure Silicon™ XO (Standard) oscillator from Abracon LLC.

Package: 6-SMD, No Lead (0.126" L x 0.098" W (3.20mm x 2.50mm))
Seated Height: 0.035" (0.90mm)
Frequency: 100 MHz
Output: LVDS
Frequency Stability: ±25ppm
Maximum Supply Current: 35mA
Voltage Supply: 2.25V to 3.6V
Enable/Disable Function: Yes
Mounting Type: Surface Mount
Temperature Range: -40°C to 85°C
