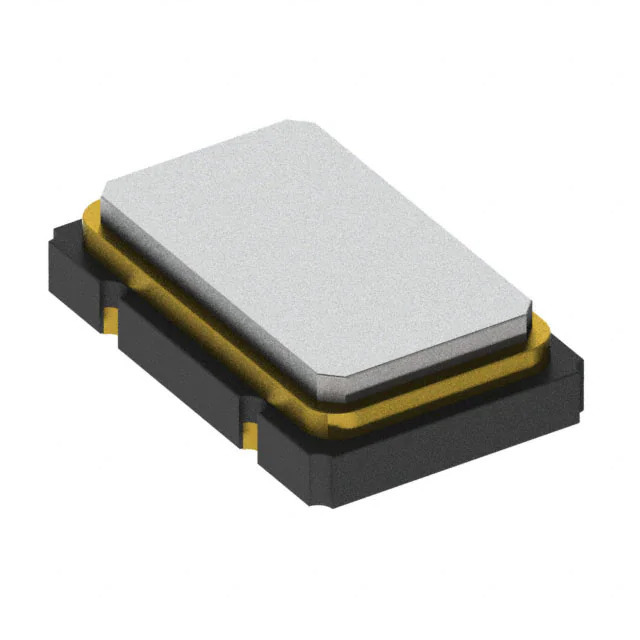

ASFL1-12.288MHZ-LCS-T Abracon LLC
Same model may have multiple batches, images only for reference.

ASFL1-12.288MHZ-LCS-T

Part No ASFL1-12.288MHZ-LCS-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 12.288MHZ 3.3V SMD
Datasheet
ASFL1-12.288MHZ-LCS-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASFL1
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 12.288 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366426-ASFL1-12.288MHZ-LCS-T
Ultra Librarian 3D Model Ultra Librarian ASFL1-12.288MHZ-LCS-T CAD Model

Description

The ASFL1-12.288MHZ-LCS-T is a crystal oscillator manufactured by Abracon LLC.

  • Temperature Range: -40°C to 85°C
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height: 0.051" (1.30mm)
  • Frequency: 12.288MHz
  • Supply Voltage: 3.3V
  • Current Consumption: 15mA
  • Enable/Disable: Yes
  • Frequency Stability: ±25ppm
  • Package: 4-SMD, No Lead
  • Mounting Type: Surface Mount
