Same model may have multiple batches, images only for reference.

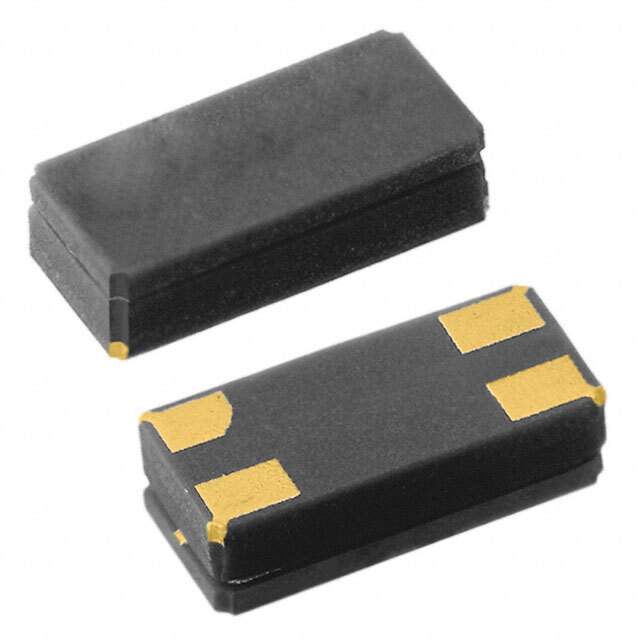

ASH7KW-32.768KHZ-L-T Real Image
Same model may have multiple batches, images only for reference.

ASH7KW-32.768KHZ-L-T

Part No ASH7KW-32.768KHZ-L-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 32.7680KHZ CMOS SMD / 32.768 kHz XO (Standard) CMOS Oscillator 1.2V ~ 5.5V Enable/Disable 4-SMD, No Lead
Datasheet
ASH7KW-32.768KHZ-L-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASH7KW
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.2V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.8µA (Typ)
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 0.5µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339898-ASH7KW-32.768KHZ-L-T
Ultra Librarian 3D Model Ultra Librarian ASH7KW-32.768KHZ-L-T CAD Model

Description

The Abracon LLC ASH7KW series XO (Standard) electronic component is a high-quality oscillator with a frequency of 32.768 kHz.

  • Frequency: 32.768 kHz
  • Output: CMOS
  • Current - Supply: 1.8µA (Typ)
  • Voltage - Supply: 1.2V to 5.5V
  • Package Type: Surface Mount 4-SMD, No Lead
