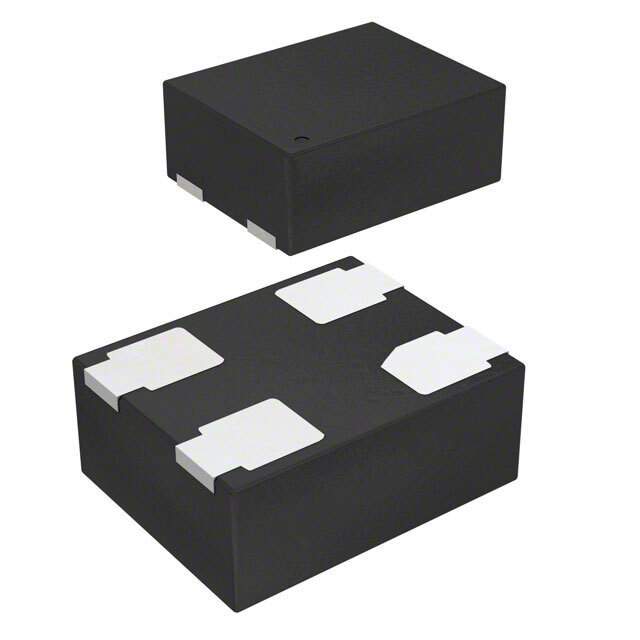

ASTMHTA-8.000MHZ-AJ-E-T Real Image
Same model may have multiple batches, images only for reference.

ASTMHTA-8.000MHZ-AJ-E-T

Part No ASTMHTA-8.000MHZ-AJ-E-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 8.0000MHZ LVCMOS SMD / 8 MHz XO (Standard) LVCMOS Oscillator 2.25V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
ASTMHTA-8.000MHZ-AJ-E-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASTMHT
Package Tape & Reel
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency 8 MHz
Function Enable/Disable
Output LVCMOS
Voltage - Supply 2.25V ~ 3.63V
Frequency Stability ±20ppm
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-15304-1,535-15304-2,535-15304-6,ASTMHTA-8.000MHZ-AJ-E-T-ND
Standard Package 1,000
Win Source Part Number 1101337-ASTMHTA-8.000MHZ-AJ-E-T
Ultra Librarian 3D Model Ultra Librarian ASTMHTA-8.000MHZ-AJ-E-T CAD Model

Description

The Abracon LLC 1101337-ASTMHTA-8.000MHZ-AJ-E-T is a highly precise XO (Standard) crystal oscillator with a frequency of 8 MHz.

  • Frequency Stability: ±20ppm
  • Function: Enable/Disable
  • Output: LVCMOS
  • Voltage Supply: 2.25V to 3.63V
  • Package: 4-SMD, No Lead
  • Operating Temperature: -40°C to 125°C
  • Package: 1000
