Same model may have multiple batches, images only for reference.

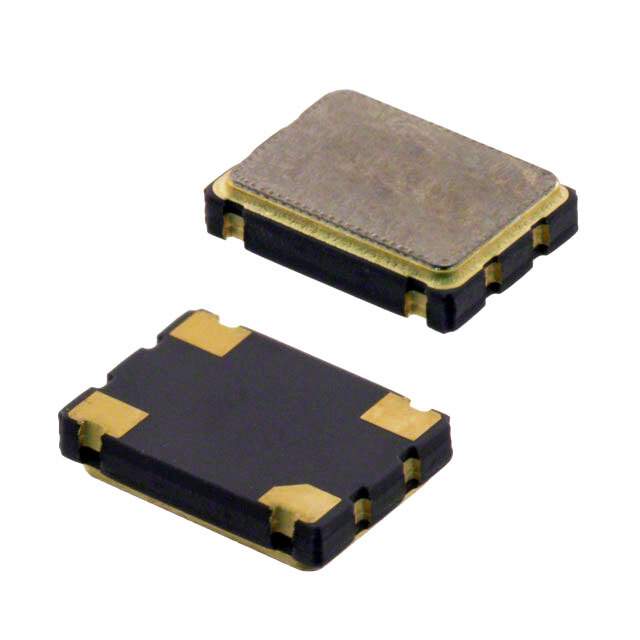

ASV-30.000MHZ-EJ-T Real Image
Same model may have multiple batches, images only for reference.

ASV-30.000MHZ-EJ-T

Part No ASV-30.000MHZ-EJ-T
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ASV-30.000MHZ-EJ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASV
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 30 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 20mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.200" W (7.00mm x 5.08mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
Other Names 535-9322-2,535-9322-1,ASV-30.000MHZ-E-J-T,ASV30000MHZEJT,300-9322-2,300-9322-1,300-9322-1,300-9322-2,535-9322-6
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284955-ASV-30.000MHZ-EJ-T
Ultra Librarian 3D Model Ultra Librarian ASV-30.000MHZ-EJ-T CAD Model

Description

The ASV-30.000MHZ-EJ-T is a crystal oscillator designed by Abracon LLC.

  • Series: ASV
  • Type: Standard XO
  • Package: Tape and reel
  • Height Seated: 0.071 inches
  • Mounting Type: Surface Mount Device
  • Frequency: 30 MHz
  • Function: Enable/Disable
  • Output: HCMOS
  • Frequency Stability: ±20ppm
  • Current Supply: 20mA
  • Current Supply (Disabled): 10μA
  • Voltage Supply: 3.3V
  • Package: 4-SMD, no lead
  • Temperature Range: -20°C to 70°C
  • Description: A reliable and efficient oscillator that is suitable for various applications.
