Same model may have multiple batches, images only for reference.

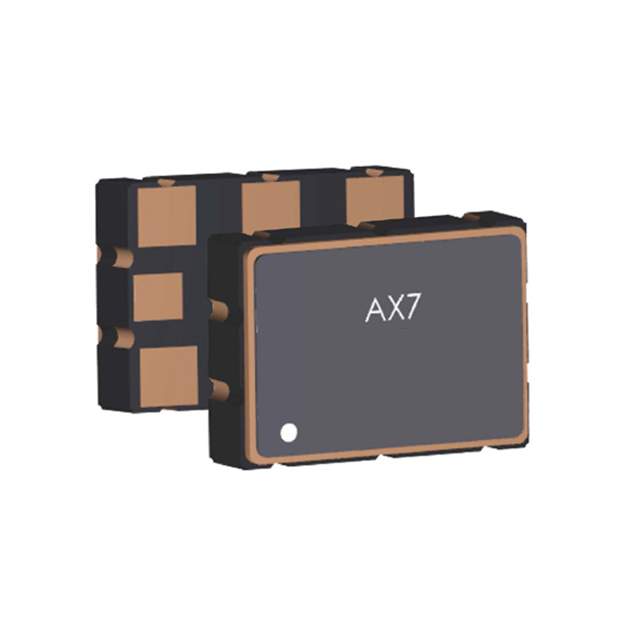

AX7MBF1-307.6955T Real Image
Same model may have multiple batches, images only for reference.

AX7MBF1-307.6955T

Part No AX7MBF1-307.6955T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 307.6955MHZ CML SMD / 307.6955 MHz XO (Standard) CML Oscillator 2.5V Enable/Disable 8-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ClearClock™ AX7
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 307.6955 MHz
Function Enable/Disable
Output CML
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 68mA
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Current - Supply (Disable) (Max) 67mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 250
Win Source Part Number 1157547-AX7MBF1-307.6955T
Ultra Librarian 3D Model Ultra Librarian AX7MBF1-307.6955T CAD Model

Description

The AX7MBF1-307.6955T is a crystal oscillator designed by Abracon LLC.

  • Series: ClearClock™ AX7
  • Packaging: Tape and Reel
  • Frequency: 307.6955 MHz
  • Frequency Stability: ±25ppm
  • Current Supply: 68mA
  • Voltage Supply: 2.5V
  • Manufacturer: Abracon LLC
