Same model may have multiple batches, images only for reference.

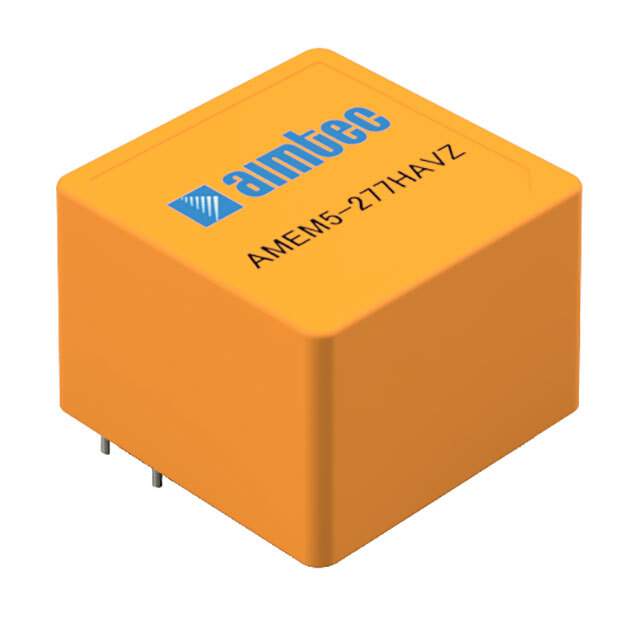

AMEM5-5S277HAVZ Real Image
Same model may have multiple batches, images only for reference.

AMEM5-5S277HAVZ

Part No AMEM5-5S277HAVZ
Manufacturer AIMTEC
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V 5W / Enclosed AC DC Converters 1 Output 5V 1A 85 ~ 305 VAC, 100 ~ 430 VDC Input
Datasheet
AMEM5-5S277HAVZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr aimtec
Series AMEM5-277HAVZ
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Applications Household Appliances, ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 77.5%
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Size / Dimension 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
Approval Agency CE, UL
Standard Number 60335-1; 62368-1
Line Regulation ±0.5%
Load Regulation ±1%
Weight 0.040 lb (18.00 g)
Base Product Number AMEM5
Standard Package 216
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1349189-AMEM5-5S277HAVZ
Ultra Librarian 3D Model Ultra Librarian AMEM5-5S277HAVZ CAD Model

Description

The AMEM5-5S277HAVZ electronic component is a type of enclosed power supply with a package of box.

  • Size: 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
  • Applications: Household appliances and ITE (Commercial)
  • Power: 5W
  • Input Voltage: 85 ~ 305 VAC, 100 ~ 430 VDC
  • Weight: 0.040 lb (18.00 g)
  • Outputs: One
  • Maximum Output Current: 1A
  • Output Voltage: 5V
  • Efficiency: 77.5%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1%
  • Mounting Type: Through-hole
  • Package/Case: 5-DIP Module, 4 Leads
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Series: AMEM5-277HAVZ
  • Manufacturer: aimtec
  • Approval Agency: CE and UL
  • Standard Number: 60335-1; 62368-1
