Same model may have multiple batches, images only for reference.

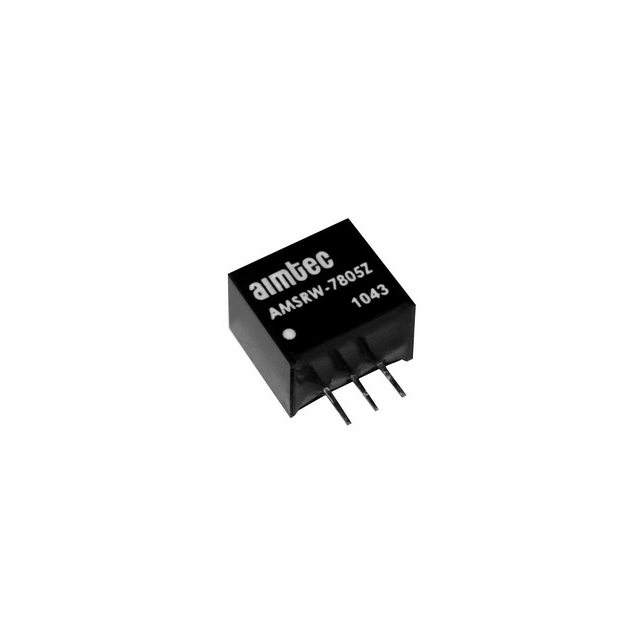

AMSRW-7815Z Real Image
Same model may have multiple batches, images only for reference.

AMSRW-7815Z

Part No AMSRW-7815Z
Manufacturer AIMTEC
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 7.5W / Non-Isolated PoL Module DC DC Converter 1 Output 15 ~ 15V 500mA 21V - 72V Input
Datasheet
AMSRW-7815Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr aimtec
Series AMSRW-78Z (7.5W)
Package Tube
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 21V
Voltage - Input (Max) 72V
Current - Output (Max) 500mA
Power (Watts) 7.5 W
Applications ITE (Commercial)
Efficiency 91%
Mounting Type Through Hole
Dimension 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Approval Agency CE
Base Product Number AMSRW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2721-AMSRW-7815Z
Standard Package 40
Win Source Part Number 1191217-AMSRW-7815Z
Ultra Librarian 3D Model Ultra Librarian AMSRW-7815Z CAD Model

Description

The AMSRW-78Z (7.5W) is a non-isolated PoL module DC-DC converter designed for ITE (Commercial) applications from aimtec.

  • Application: ITE (Commercial)
  • Output Current (Max): 500mA
  • Power Rating: 7.5W
  • Input Voltage Range: 21V to 72V
  • Efficiency: 91%
  • Mounting Type: Through-Hole
  • Package: Tube
  • Length: 0.46 inches
  • Width: 0.29 inches
  • Height: 0.40 inches
