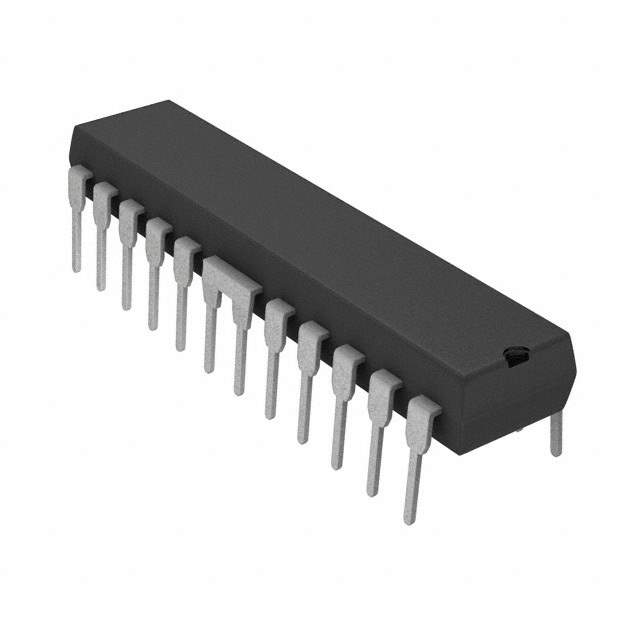

A3992SB-T Real Image
Same model may have multiple batches, images only for reference.

A3992SB-T

Part No A3992SB-T
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER SER 24DIP
Datasheet
A3992SB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Allegro MicroSystems, LLC
Packaging Tube
Part Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Serial
Technology DMOS
Step Resolution 1 ~ 1/64
Applications General
Output Current 1.5A
Operating Supply Voltage 4.5 V ~ 5.5 V
Voltage - Load 15 V ~ 50 V
Operating Temperature Range -20°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 24-PowerDIP (0.300", 7.62mm)
Manufacturer Package 24-DIP
Win Source Part Number 766707-A3992SB-T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 15
Family Name A3992
Introduction Date August 30, 2006
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian A3992SB-T CAD Model

Description

The A3992SB-T is an electronic component, manufactured by Allegro MicroSystems, LLC.

  • Output Configuration: Half-bridge (4)
  • Output Current: 1.5A
  • Temperature Range: -20°C to 150°C
  • Motor Type: Bipolar Stepper
  • Step Resolution: 1 ~ 1/64
