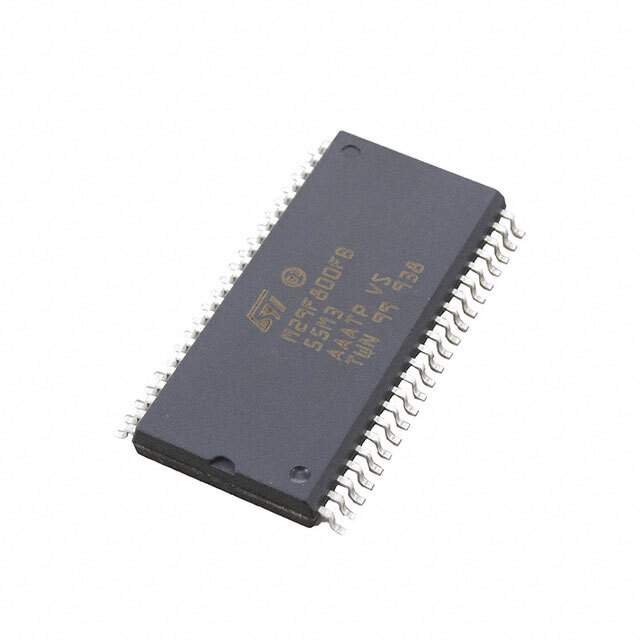

M29F800FB55M3F2 Real Image
Same model may have multiple batches, images only for reference.

M29F800FB55M3F2

Part No M29F800FB55M3F2
Manufacturer Alliance Memory, Inc.
Catalog Flash
Description IC FLASH 8MBIT 44SO  /  FLASH - NOR Memory IC 8Mb (1M x 8, 512K x 16) 55 ns 44-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Alliance Memory, Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 8Mb (1M x 8, 512K x 16)
Write Cycle Time - Word, Page 55ns
Access Time 55 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 44-SOIC (0.496", 12.60mm Width)
Supplier Device Package 44-SO
Base Product Number M29F800
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Other Names 1450-M29F800FB55M3F2DKR,1450-M29F800FB55M3F2TR,1450-M29F800FB55M3F2CT
Standard Package 500
Win Source Part Number 1073599-M29F800FB55M3F2
Ultra Librarian 3D Model Ultra Librarian M29F800FB55M3F2 CAD Model

Description

The M29F800FB55M3F2 is a non-volatile 8Mb (1M x 8, 512K x 16) FLASH - NOR memory IC from Alliance Memory, Inc.

  • Manufacturer: Alliance Memory, Inc.
  • Memory Type: FLASH - NOR
  • Memory Size: 8Mb (1M x 8, 512K x 16)
  • Access Time: 55 ns
  • Voltage Supply: 4.5V ~ 5.5V
  • Package: 44-SOIC (0.496", 12.60mm Width)
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Compliance: Automotive AEC-Q100
