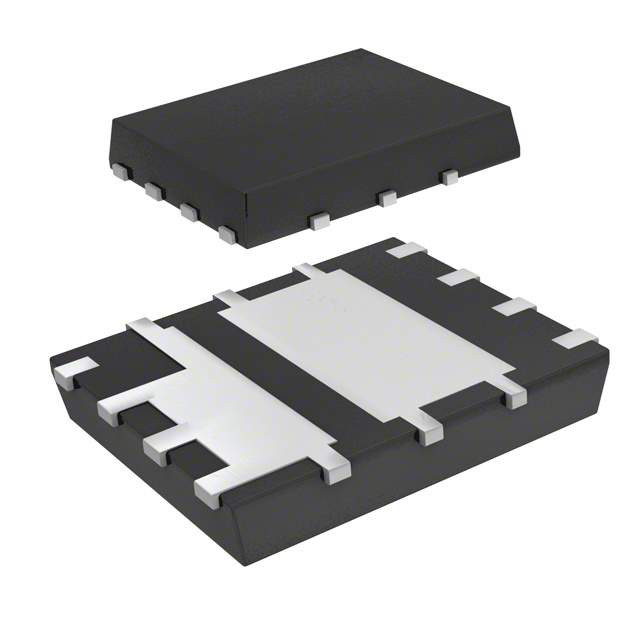

AON6946 Real Image
Same model may have multiple batches, images only for reference.

AON6946

Part No AON6946
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 14A/18A 8DFN
Datasheet
AON6946 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 14A, 18A
Maximum Rds On at Id,Vgs 11.6 mOhm @ 13A, 10V
Gate-Source Threshold Voltage 2.2V @ 250μA
Max Gate Charge 15nC @ 10V
Max Input Capacitance 485pF @ 15V
Maximum Power Dissipation 3.5W, 3.9W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (5x6)
Win Source Part Number 1017109-AON6946
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AON6946 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON6946 is a 2 N-channel (half bridge) FET transistor designed for use in a wide range of electronic applications. It features a drain-source breakdown voltage of 30V and a continuous drain current of up to 14A @ 25°C.

  • Maximum Gate-Source Voltage: ±10V
  • Maximum Rds On: 11.6 mOhm @ 13A and 10V
  • Package: 8-DFN (5x6)
  • Power Dissipation: 3.5W, 3.9W
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
