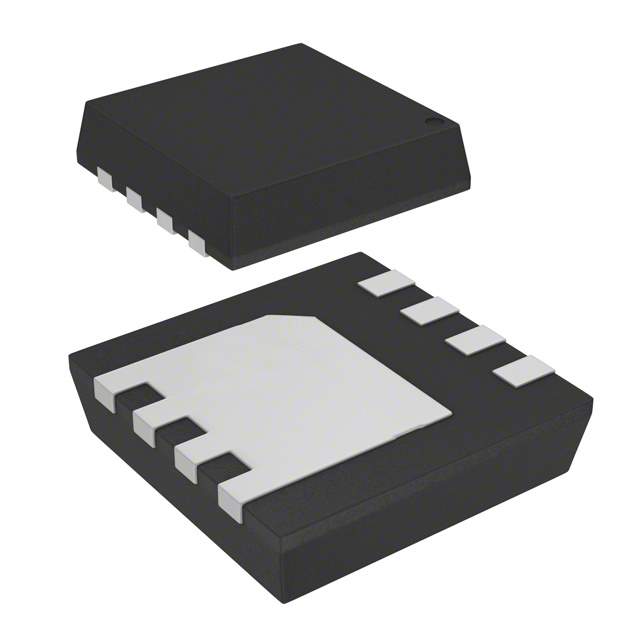

AON7758 Real Image
Same model may have multiple batches, images only for reference.

AON7758

Part No AON7758
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description DFN 3.3X3.3 PACKAGE MARKING DESCRIPTION
Datasheet
AON7758 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Series AlphaMOS
Packaging Reel - TR
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 36A (Ta), 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 100nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 5200pF @ 15V
Vgs (Maximum) ±12V
Power Dissipation (Maximum) 4.2W (Ta), 34W (Tc)
Rds On (Maximum) @ Id, Vgs 1.85 mOhm @ 20A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 8-DFN-EP (3.3x3.3)
Package 8-PowerWDFN
Manufacturer Homepage www.aosmd.com
Win Source Part Number 744364-AON7758
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AON7758 CAD Model

Description

The supply and demand status is limited and the part status is obsolete (EOL).

  • Supply and Demand Status: limited
  • Part Status: obsolete (EOL)
  • Manufacturer Homepage: www.aosmd.com
  • Win Source Part Number: AON7758
  • Technology: MOSFET
  • Current - Continuous Drain (Id) @ 25°C: 36A (Ta), 75A (Tc)
  • Power Dissipation (Maximum): 4.2W (Ta), 34W (Tc)
