Same model may have multiple batches, images only for reference.

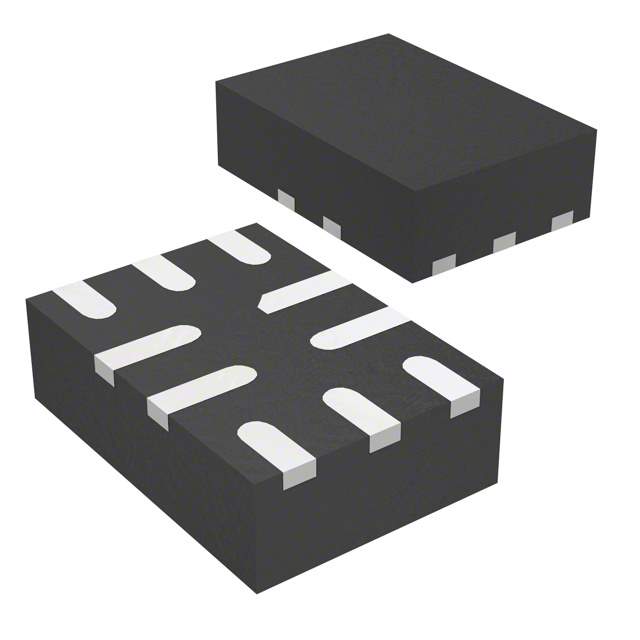

AOZ6185QT Real Image
Same model may have multiple batches, images only for reference.

AOZ6185QT

Part No AOZ6185QT
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Interface - Analog Switches - Special Purpose
Description IC USB/AUDIO SWITCH DPDT 10QFN
Datasheet
AOZ6185QT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Applications Audio, USB
Switch Circuit DPDT
Number of Channels 1
Max On Resistance 8 Ohm
Single Supply Voltage (V+) 1.65 V to 4.5 V
-3db Bandwidth 990MHz
Features Break-Before-Make
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-QFN (1.8x1.4)
Win Source Part Number 1017394-AOZ6185QT
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AOZ6185QT CAD Model

Description

The Alpha & Omega Semiconductor Inc. 1017394-AOZ6185QT is a DPDT analog switch designed for use in audio and USB applications.

  • Type: DPDT Analog Switch
  • Applications: Audio and USB
  • -3db Bandwidth: 990MHz
  • Channel: Single
  • Maximum On Resistance: 8 Ohm
  • Package: 10-QFN (1.8x1.4)
  • Supply Voltage Range: 1.65V to 4.5V
  • Mounting Technology: SMD (SMT)
