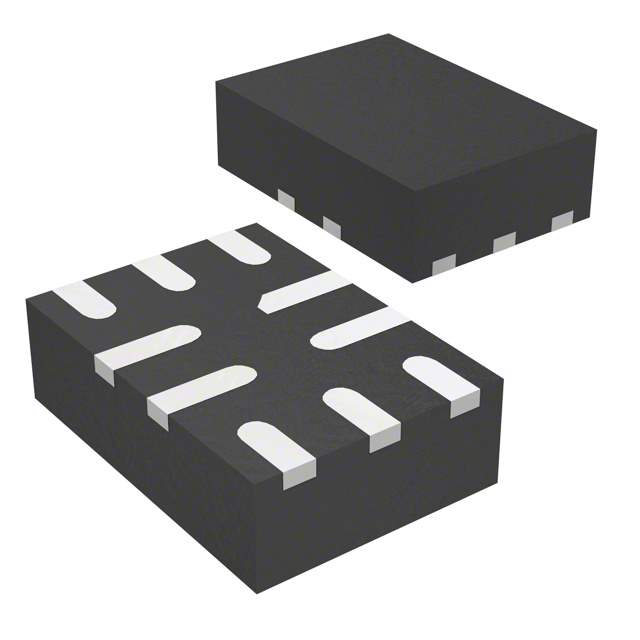

AOZ6236QI Real Image
Same model may have multiple batches, images only for reference.

AOZ6236QI

Part No AOZ6236QI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description 0.35 ohm Low-Voltage Dual SPDT Analog Switch | IC USB 2.0 SWITCH 10QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Alpha & Omega Semiconductor Inc.
Status Obsolete
Switch Circuit SPDT
On-State Resistance (Maximum) 400mOhm
Channel-to-Channel Matching (ΔRon) 20mOhm
Supply Voltage , Single (V+) 1.65V ~ 4.3V
Switch Time (Ton, Toff) (Maximum) 60ns, 35ns
-3db Bandwidth 50MHz
Charge Injection 40pC
Channel Capacitance (CS(off), CD(off)) 15pF
Current - Leakage (IS(off)) (Maximum) 50nA
Crosstalk -70dB at 100kHz
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 10-UFQFN
Supplier Device Package 10-QFN (1.8x1.4)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1145103-AOZ6236QI
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOZ6236QI CAD Model

Description

The AOZ6236QI is a SPDT switch circuit integrated circuit manufactured by Alpha & Omega Semiconductor Inc.

  • Switch Time (Ton, Toff) (Maximum): 60ns and 35ns, respectively
  • On-State Resistance (Maximum): 400mOhm
  • Current Leakage (IS(off)) (Maximum): 50nA
  • Operating Temperature Range: -40°C to 85°C
  • Supplier Device Package: 10-QFN (1.8x1.4)
  • Win Source Part Number: 1145103-AOZ6236QI
  • Manufacturer Homepage: www.aosmd.com
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Supply Voltage, Single (V+): 1.65V to 4.3V
  • Supply Voltage, Dual (V±): -
