Same model may have multiple batches, images only for reference.

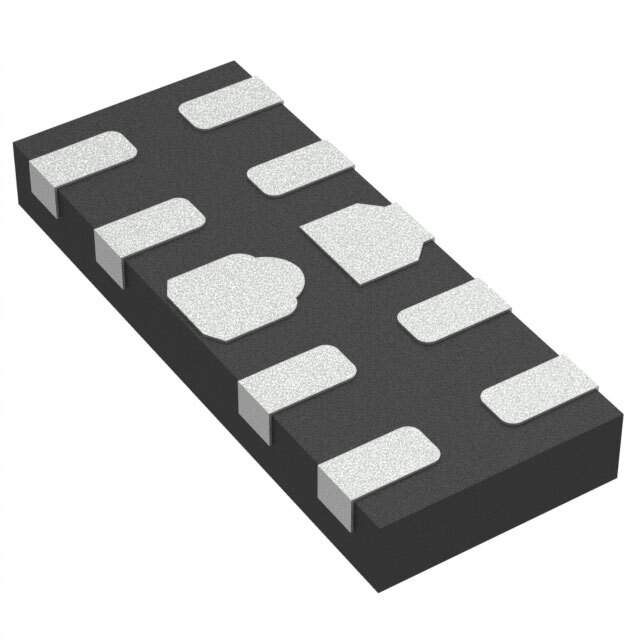

AOZ8809DI-03 Real Image
Same model may have multiple batches, images only for reference.

AOZ8809DI-03

Part No AOZ8809DI-03
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 8VC 10DFN
Datasheet
AOZ8809DI-03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 25 Weeks
Features 8V Clamp 12A (100ns) Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
Manufacturer Alpha & Omega Semiconductor Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 10-UFDFN
Case / Package 10-DFN (2.5x1)
Family Name AOZ8809
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 785-1753-2, 785-1753-1, AOZ8809DI-03-ND, 785-1753-6
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861261-AOZ8809DI-03
Ultra Librarian 3D Model Ultra Librarian AOZ8809DI-03 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOZ8809DI-03 is a surface mount TVS diode with a clamp voltage of 8V and a peak pulse current rating of 12A. It comes in a 10-DFN (2.5x1) package and is part of the AOZ8809 family.

  • Mounting: Surface Mount
  • Clamp Voltage: 8V
  • Peak Pulse Current: 12A
  • Package: 10-DFN (2.5x1)
  • Family: AOZ8809
  • Application: Circuit Protection
  • Popularity: Medium
  • Temperature Range: -40°C to 125°C
  • Quantity per Package: 3000
  • Estimated Production Lead Time: 25 weeks
