Same model may have multiple batches, images only for reference.

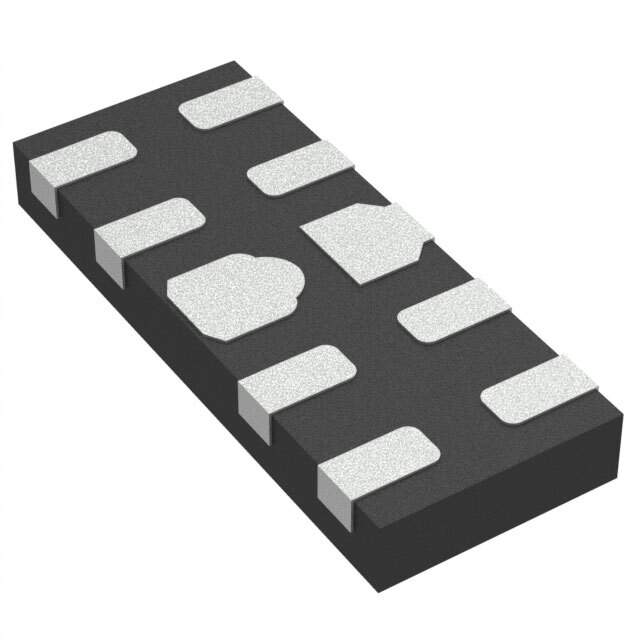

AOZ8818DI-05 Real Image
Same model may have multiple batches, images only for reference.

AOZ8818DI-05

Part No AOZ8818DI-05
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18VC 10DFN
Datasheet
AOZ8818DI-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 18V
Peak Pulse Current(Ippm) 12A (100ns)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-DFN (2.5x1)
Win Source Part Number 078274-AOZ8818DI-05
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AOZ8818DI-05 CAD Model

Description

AOZ8818DI-05 Description

The AOZ8818DI-05 is a high-performance multi-channel ESD protection solution, specifically designed for protecting high-speed data lines from electrostatic discharge. It features very low capacitance and impressive robustness against transient voltages.

  • Applications/Projects
    • Ethernet interfaces
    • Displays and monitors
    • Industrial control systems
    • High-speed communication networks
  • Features and Benefits
    • Multi-channel protection for comprehensive coverage
    • Very low capacitance to preserve data rates
    • Robust ESD protection for reliability
    • Small form factor
  • Additional Details
    • Suitable for high-speed data applications
    • Compatible with industry-standard protection levels
