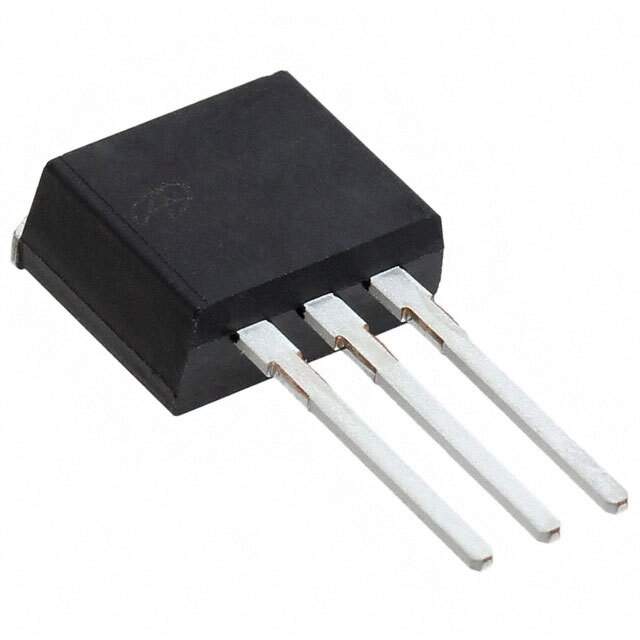

The W20S60 is a 600V, 20A silicon carbide (SiC) Schottky diode manufactured by Alpha & Omega Semiconductor (AOS). This diode features near-zero reverse recovery current, high surge current capability, and temperature-independent switching behavior. It is designed to improve the efficiency and reliability of power conversion systems.

Applications:

• Power Factor Correction (PFC) circuits
• Boost diodes in inverters
• Free-wheeling diodes in motor drives
• High-frequency rectifiers
• Switch-mode power supplies (SMPS)

Features:

• 600V Reverse Voltage
• 20A Forward Current
• Zero Reverse Recovery Current (Qrr)
• High Surge Current Capability
• Temperature-Independent Switching Behavior
• Positive Temperature Coefficient on VF
• RoHS Compliant

Benefits:

• Increased Efficiency: Eliminates reverse recovery losses, reducing power dissipation and improving overall system efficiency.
• Improved Reliability: High surge current capability and temperature-independent switching ensure robust performance under various operating conditions.
• Reduced EMI: Faster switching speeds with minimal ringing reduce electromagnetic interference.
• Simplified Thermal Management: Positive temperature coefficient on forward voltage simplifies parallel operation and thermal design.
• Higher Power Density: Enables the design of smaller and more efficient power conversion systems.
• Reduced Cooling Requirements: Lower power losses result in less heat generation, reducing the need for bulky heat sinks.

Additional Details:

The W20S60 SiC Schottky diode offers significantly improved performance compared to traditional silicon diodes. Its zero reverse recovery current eliminates losses associated with reverse recovery charge, enabling higher switching frequencies and increased efficiency. The device's high surge current capability provides robustness against transient events. The temperature-independent switching behavior ensures consistent performance across a wide temperature range. It is typically packaged in a TO-220 or similar package for easy mounting and heat dissipation. SiC diodes like the W20S60 are increasingly used in power electronics to improve the efficiency and reliability of various applications, ranging from power supplies to motor drives. Its datasheet contains detailed electrical characteristics, thermal resistance values, and safe operating area plots for proper design and application.
