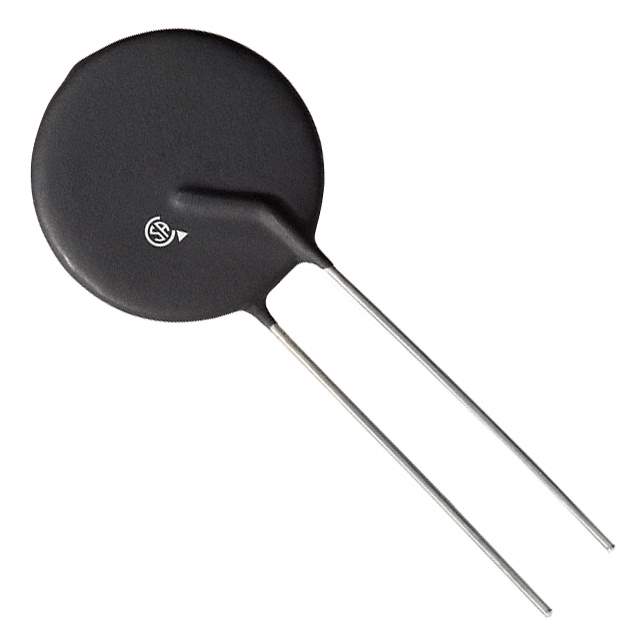

The SL3210015 is an inrush current limiter (ICL) manufactured by Ametherm. It's a thermistor designed to protect electrical circuits from damage caused by high inrush currents at startup. When equipment is first turned on, components like capacitors and transformers can draw a large surge of current. The SL3210015 limits this surge, preventing blown fuses, tripped circuit breakers, and component degradation. This component is commonly used in power supplies, motor drives, and other electronic devices.

Applications

• Switch-Mode Power Supplies (SMPS): Protects the rectifier and smoothing capacitors from high inrush currents during startup.
• AC Motors: Limits inrush current in AC motors, preventing damage to windings and bearings.
• Transformers: Prevents saturation and reduces stress on transformer windings during initial energization.
• LED Lighting: Protects LED drivers from inrush current, extending the lifespan of the LEDs.
• Uninterruptible Power Supplies (UPS): Limits inrush current to the UPS system, ensuring a stable and reliable power source.

Features

• High Inrush Current Suppression: Effectively limits the initial surge of current during startup.
• Fast Response Time: Quickly reacts to inrush current events, providing immediate protection.
• High Energy Absorption: Absorbs a significant amount of energy without being damaged.
• Small Size: Compact design allows for easy integration into various electronic devices.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Protects Components: Prevents damage to sensitive electronic components from inrush current.
• Extends Equipment Lifespan: Reduces stress on components, prolonging the lifespan of the equipment.
• Improves Reliability: Prevents blown fuses and tripped circuit breakers, improving system reliability.
• Reduces Maintenance Costs: Lowers the likelihood of component failures, reducing maintenance costs.
• Simplifies Design: Easy to integrate into existing circuits, simplifying the design process.

Additional Details

The SL3210015 typically comes in a disc or radial leaded package for through-hole mounting. Key specifications include a resistance at 25°C (R25) of 1.5 Ohms, a maximum steady-state current of 15A and a body diameter. The operating temperature range is generally between -40°C and +125°C. The datasheet from Ametherm provides detailed information on the energy absorption capability, thermal time constant, and other electrical characteristics. The component automatically resets after cooling down once the inrush event has passed.
