Products specifications

Categories Uncategorized
Manufacturer Amic
Popularity Low
Supply and Demand Status Balance

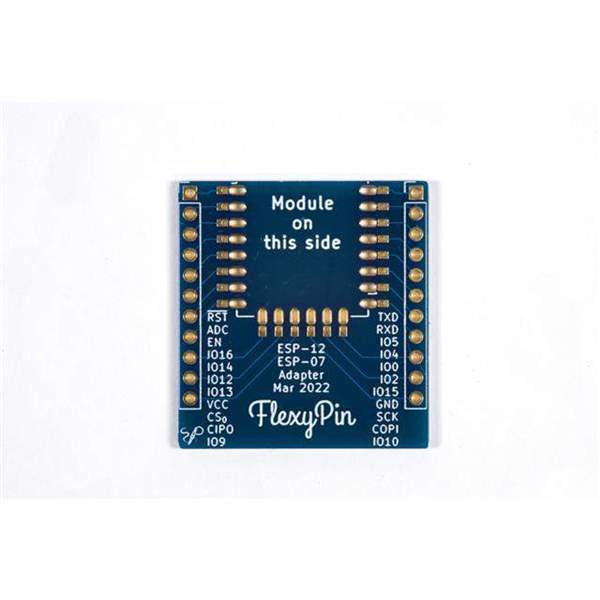

Win Source Part Number 843304-ESP8266 (ESP-07)
Ultra Librarian 3D Model Ultra Librarian ESP8266 (ESP-07) CAD Model

Description

The ESP8266, specifically the ESP-07 module, is a widely used low-cost Wi-Fi microchip, with full TCP/IP stack and microcontroller capability. While often associated with Espressif Systems, the ESP-07 module itself can be manufactured by various vendors, including (potentially) Amic. It is a popular choice for IoT (Internet of Things) projects, hobbyist applications, and rapid prototyping due to its small size, affordability, and ease of use.

Applications:

  • IoT Devices: Connecting sensors, actuators, and other devices to the internet.
  • Smart Home Automation: Controlling lights, appliances, and other home systems remotely.
  • Wireless Sensor Networks: Creating networks of sensors for environmental monitoring, data collection, and security systems.
  • Wearable Electronics: Integrating Wi-Fi connectivity into wearable devices.
  • Remote Control Systems: Building custom remote controls for various applications.

Features:

  • Wi-Fi Connectivity: Supports 802.11 b/g/n Wi-Fi standards.
  • Microcontroller: Integrated Tensilica L106 32-bit microcontroller.
  • Operating Voltage: 3.3V operating voltage.
  • GPIO Pins: Multiple GPIO (General Purpose Input/Output) pins for connecting to external devices.
  • Serial Communication: Supports UART, SPI, and I2C serial communication protocols.
  • Flash Memory: Integrated flash memory for storing firmware and data.

Benefits:

  • Low Cost: Affordable price makes it accessible for hobbyists and commercial applications.
  • Small Size: Compact form factor allows for integration into space-constrained designs.
  • Easy to Use: Extensive documentation and community support make it easy to get started.
  • Versatile: Supports a wide range of applications due to its flexible features and capabilities.
  • Open Source: Open-source firmware and software tools are available for customization.

Additional Details:

The ESP-07 module features castellated pads for easy soldering and mounting. It typically includes a ceramic antenna for Wi-Fi communication, but external antenna options are also available. The module can be programmed using the Arduino IDE, MicroPython, or other development environments. It supports over-the-air (OTA) firmware updates, allowing for remote updates and bug fixes. Power consumption is a key consideration for battery-powered applications, and the ESP8266 offers various power-saving modes. Security features include WEP, WPA/WPA2 authentication protocols. The ESP8266's popularity has led to a large ecosystem of libraries, example code, and tutorials, making it a valuable tool for both beginners and experienced developers. Specific details about the Amic-manufactured ESP-07 may vary slightly, so datasheets should always be consulted.
