Products specifications

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Sensor Type Digital, Local/Remote
Sensing Temperature - Local -40°C ~ 125°C
Sensing Temperature - Remote -64°C ~ 191°C
Output Type SMBus
Operating Supply Voltage 2.7 V ~ 5.5 V
Resolution 11 b
Features One-Shot, Output Switch, Programmable Limit, Shutdown Mode
Accuracy - Highest (Lowest) ±1.5°C (±2.5°C)
Test Condition 15°C ~ 85°C (-40°C ~ 125°C)
Operating Temperature Range -40°C ~ 125°C
Mounting SMD

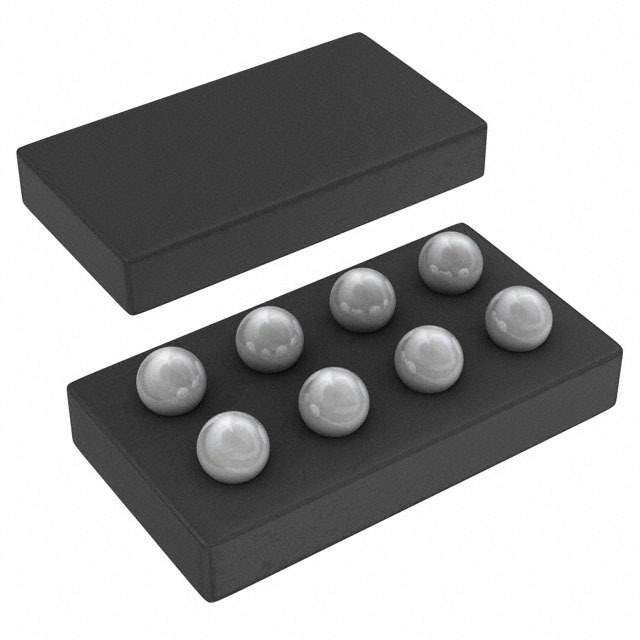

Package 8-UFBGA, DSBGA
Manufacturer Package 8-DSBGA (2.3x1.3)
Win Source Part Number 1270816-TMP421YZDR
Manufacturer Homepage www.ti.com
Family Name TMP421
Introduction Date March 16, 2012
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TMP421YZDR CAD Model

Description

Product Overview: Texas Instruments TMP421YZDR

The Texas Instruments TMP421YZDR is a high-precision digital temperature sensor designed for a wide range of applications that require accurate temperature monitoring. This advanced sensor is part of the TMP421 family and offers an excellent blend of performance, versatility, and reliability, making it an ideal choice for system temperature monitoring in computing systems, environmental controls, industrial equipment, and consumer electronics.

Key Features

  • Accuracy: The TMP421YZDR boasts an impressive accuracy of ±1°C (max) from -40°C to +125°C, ensuring precise temperature readings for critical applications.
  • Supply Voltage: It operates over a supply voltage range of 2.7V to 5.5V, accommodating a variety of power environments.
  • Remote Temperature Sensing: This device is capable of measuring temperature from an external diode-connected transistor, which is typically the junction temperature of a CPU or another integrated circuit, providing direct thermal monitoring of these components.
  • Programmable Resolution: The TMP421YZDR allows selectable resolution from 9 to 12 bits, enabling users to optimize the trade-off between resolution and conversion time according to their specific needs.
  • Communication Interface: It uses a two-wire, SMBus-compatible serial interface, which simplifies integration into existing designs and allows for straightforward communication with microcontrollers and other digital systems.
  • Multiple Alert Functions: The sensor includes programmable overtemperature and undertemperature alert functions, which can trigger an interrupt to the host system when temperature thresholds are exceeded, enhancing system protection and safety.

Package and Availability

The TMP421YZDR is offered in a compact 8-pin MSOP (Mini Small Outline Package) that is designed for space-constrained applications. This package is RoHS compliant and is specified for operation over the extended industrial temperature range of -40°C to +125°C. Texas Instruments provides this temperature sensor in tape and reel packaging, facilitating efficient handling and manufacturing processes.

With its combination of high accuracy, flexible power requirements, and advanced features, the Texas Instruments TMP421YZDR stands out as a robust solution for temperature monitoring and management in a broad array of applications.
